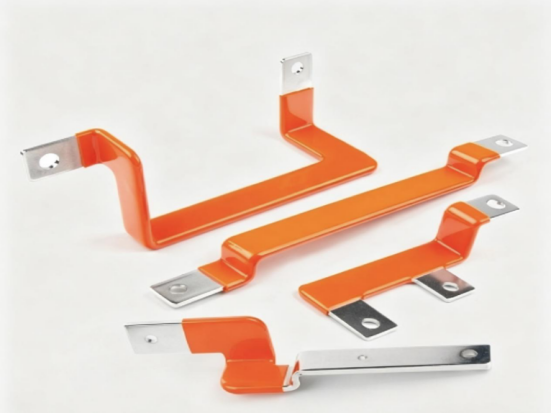

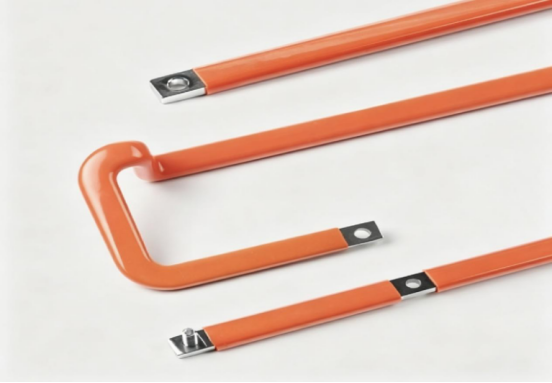

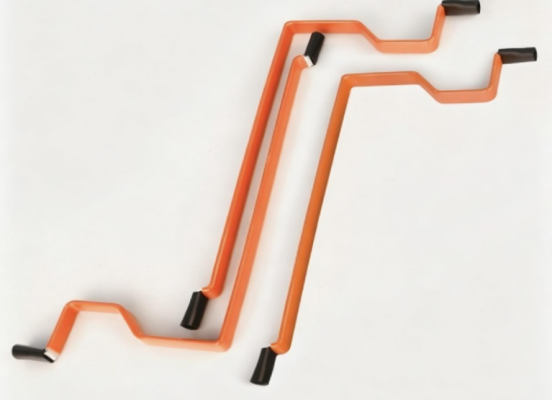

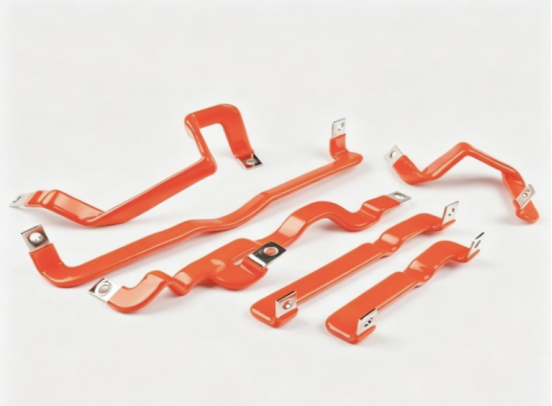

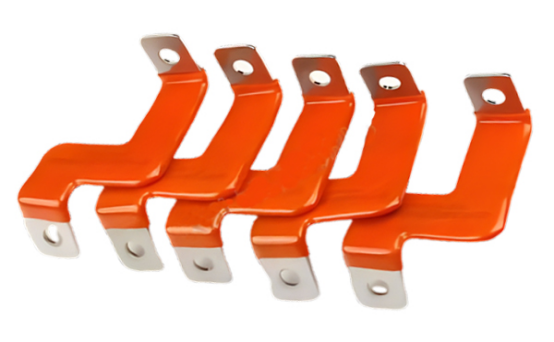

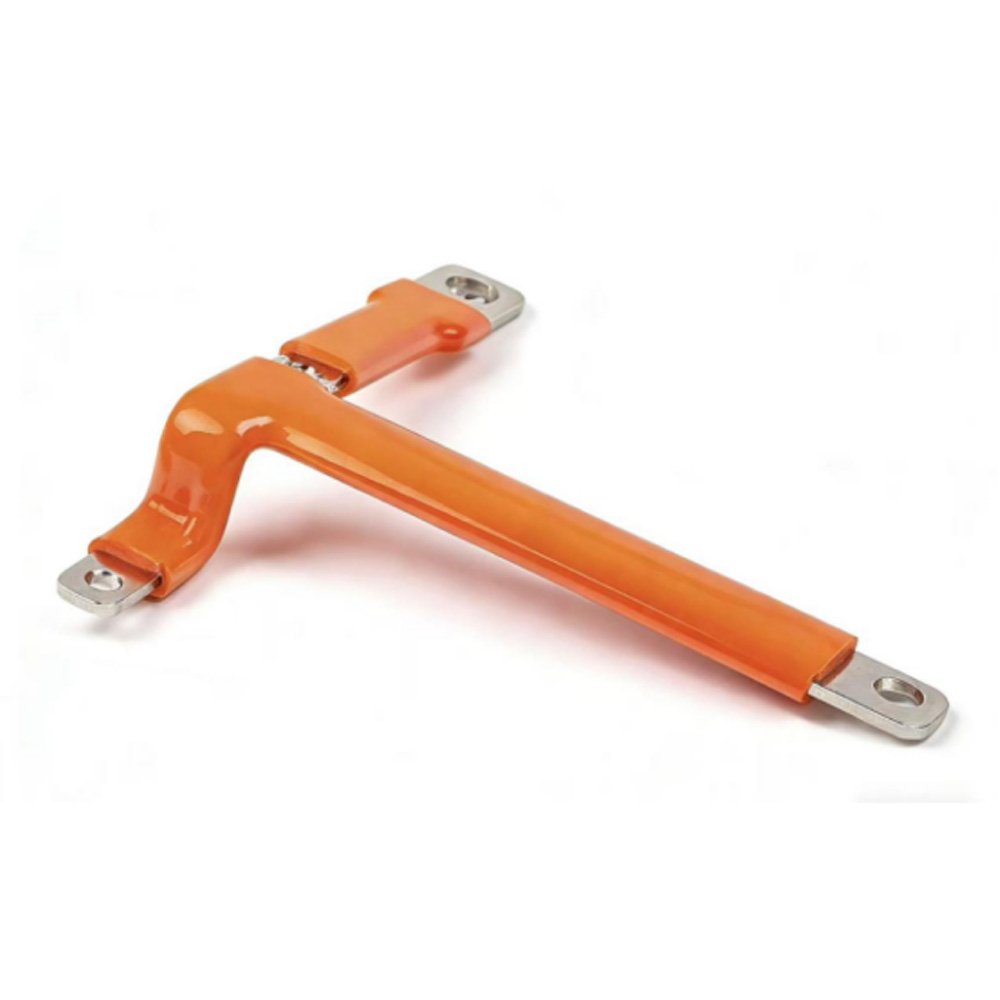

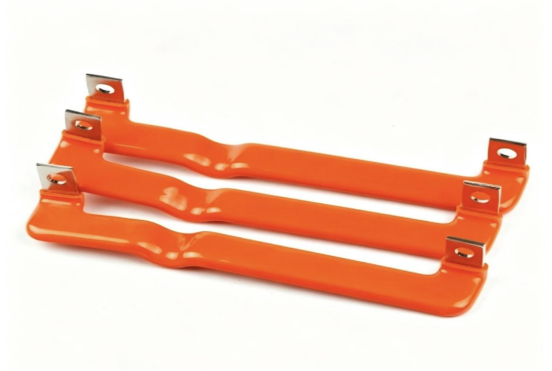

PVC Dipped Insulated Copper Busbar
Product features:
- PVC Dipped Insulated Copper Busbar | Custom Bent Formed Copper Bus Bar for BESS EV PV
- Full PVC dip-molded insulation on shaped copper busbar, seamless coverage over the entire profile, with precision-exposed terminals for easy installation.

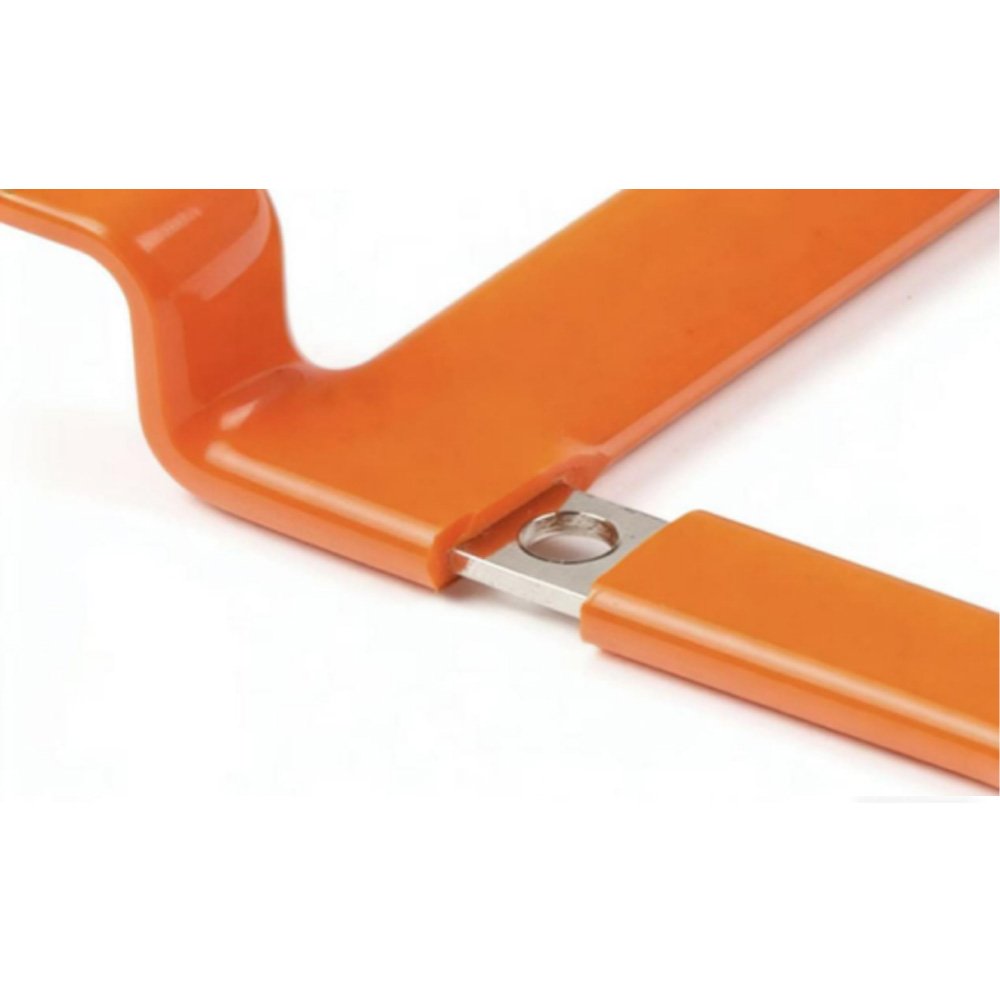

- Clean, cut-back insulation at terminals, with no coating overhang or burrs, ensuring flat, reliable contact
- Smooth, wrinkle-free PVC coating on bends and corners, uniform thickness, no pinholes or weak spots
Description
Product Introduction:
| Item | Value |
|---|---|
| Operating Temperature | -40℃ to +125℃ |
| Flammability Rating | UL94 V-0 |
| Surface Treatment | Tin-plated / Nickel-plated / Silver-plated / Bare copper |
| Key Features | Full uniform insulation coverage on complex/bent profiles, excellent adhesion and impact resistance, no gaps at holes, edges or bends. |
| Customization | All dimensions, shapes, holes, plating and insulation thickness can be tailored to customer drawings. |
| Certificates | RoHS, REACH, ISO9001, test reports available on request |
| Applications | Energy storage systems, PV inverters, EV chargers, low-voltage switchgear. |
- PVC Dipping Insulated Battery Busbar Connector
- Battery Busbar: Flexible Copper Busbars
- Copper Bus Bar for Power Storage Systems
- Flexible Busbars, Copper Shunts Insulated for EV Applications
- Copper Bus Bar for Power Distribution
- Flexible Aluminum Bus Bar Insulated for EV Application
