Manufacturing Capabilities
High-Purity Copper, Precision Machined for Reliable Power Distribution
Copper Busbar Manufacturing for Energy Storage & Power Systems
Precision CNC machining, bending, plating and insulation for custom-designed busbar solutions.
OUR SERVICE:
- ±0.1mm CNC precision machining
- Full in-house manufacturing capability
- Fast sampling for OEM & ODM projects
Copper Busbar Manufacturing for Energy Storage & Power Systems
Precision CNC machining, bending, plating and insulation for custom-designed busbar solutions.
Product case

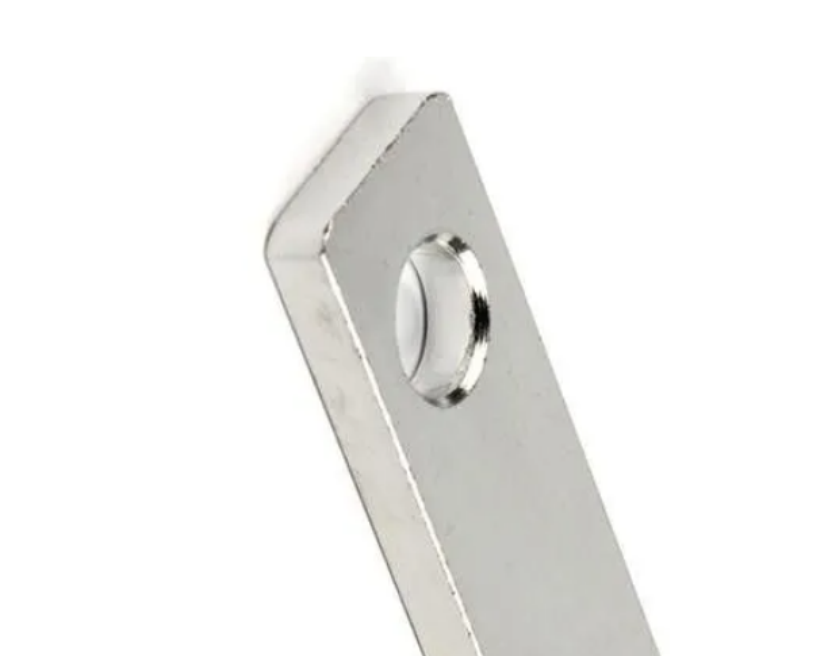

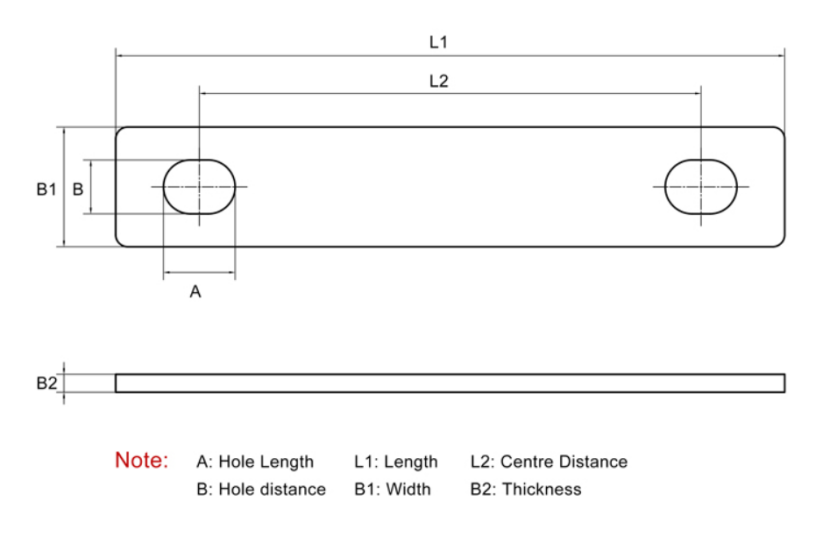

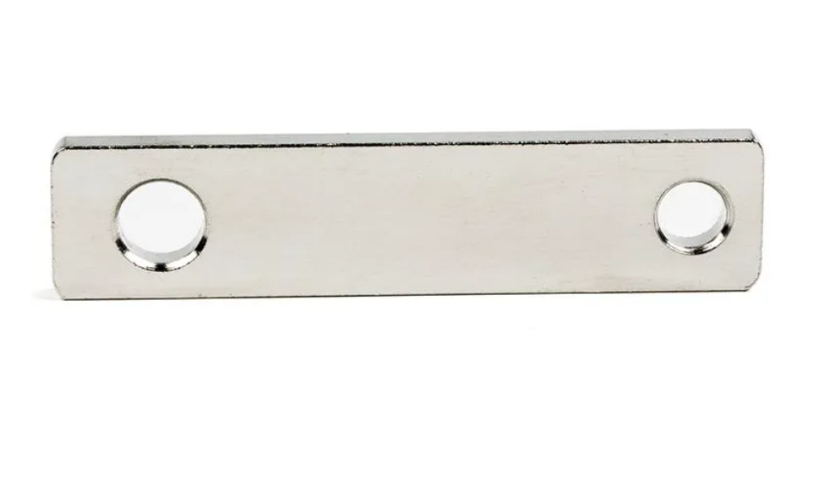

Straight Copper Busbar with Holes
No warping or bending | Burr-free Holes | Smooth Edges
A, B, L1, L2, B1 and B2 can all be customized to your requirements.

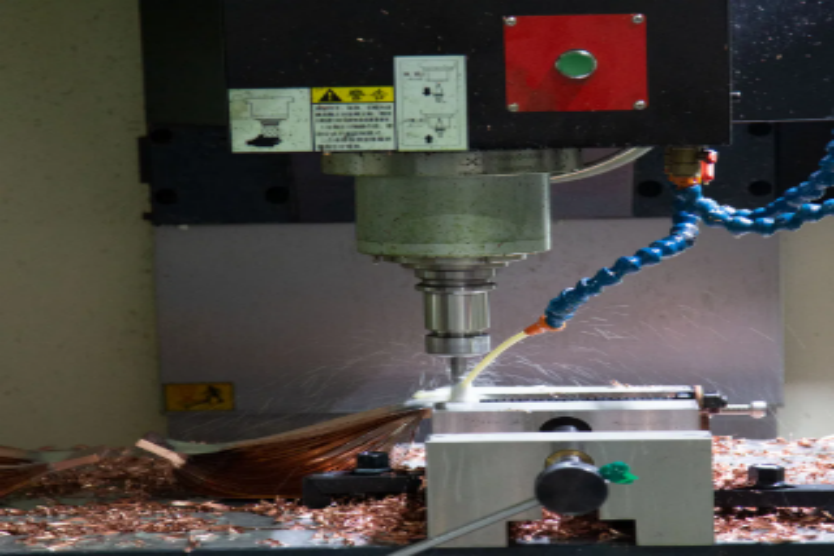

Precision CNC Machining & Drawing-Based Customization：
- Hole accuracy ±0.1mm
- Custom drawing-based production

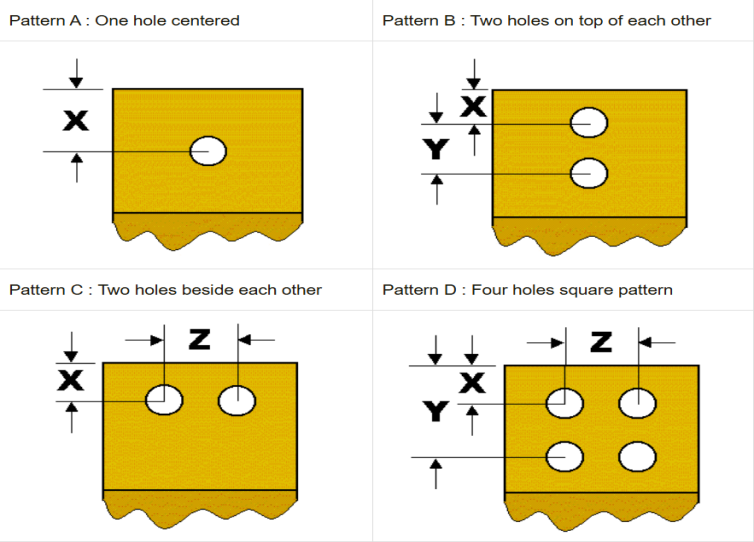

- Complex hole patterns supported

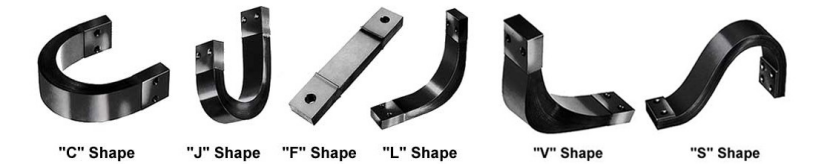

Busbar Forming & Bending
We support complex 2D and 3D bending structures for compact electrical systems.
Product case

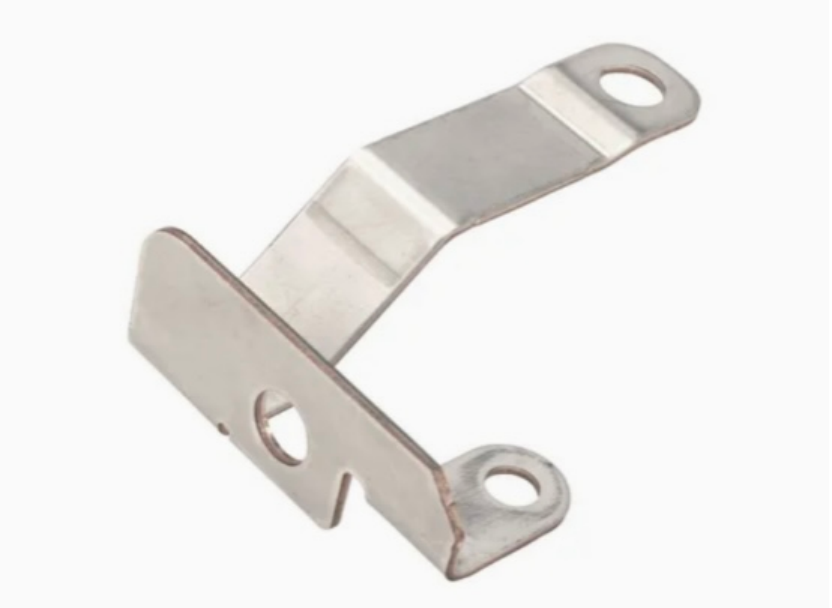

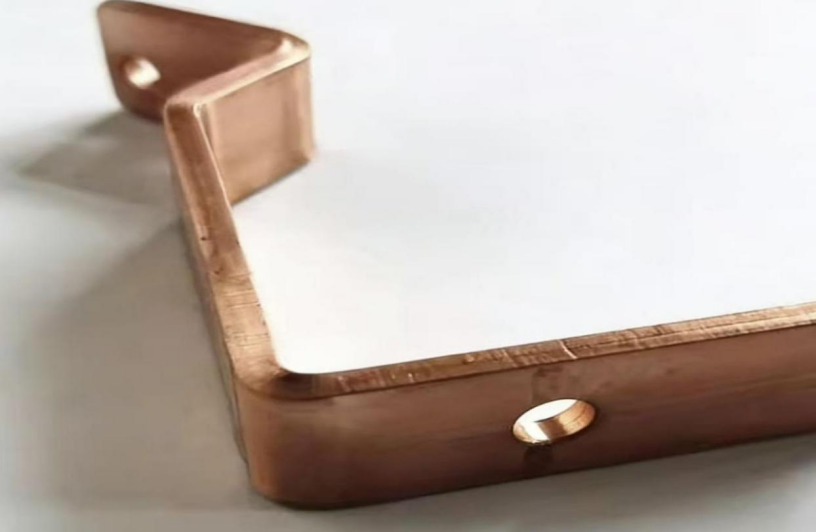

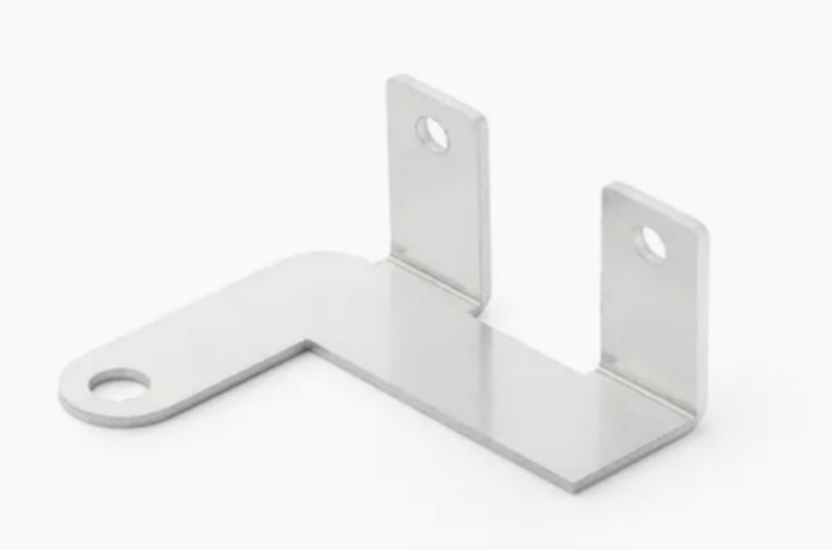

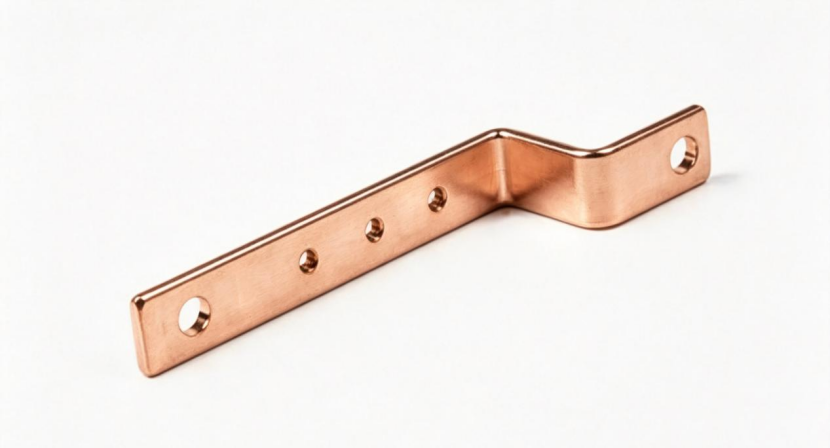

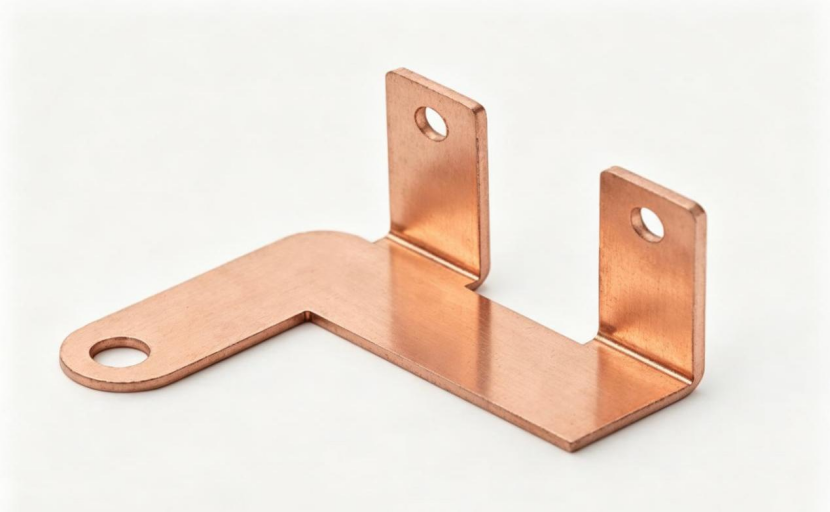

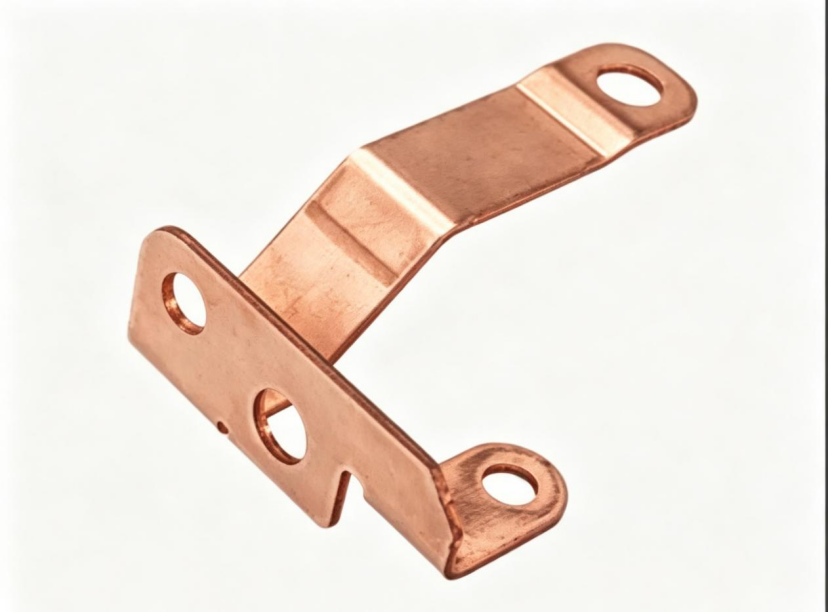

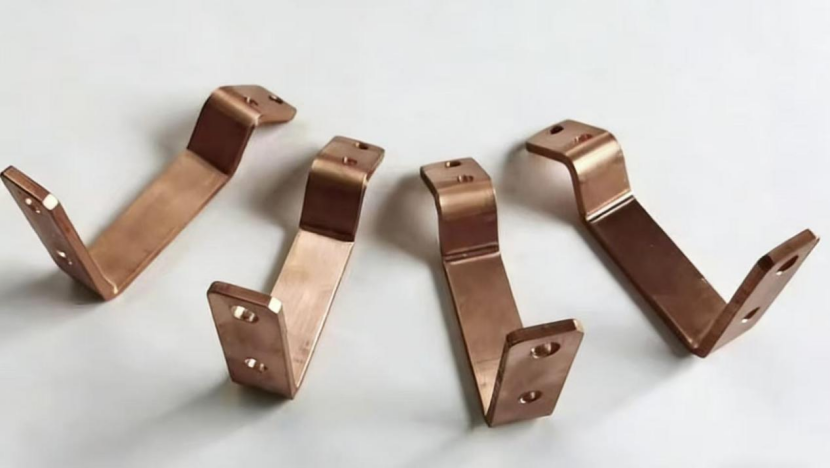

Multi-Bend Copper Conductive Bar
Custom Precision Shaped Copper Busbars | Zero-Crack Bending | Burr-free Holes | Smooth Chamfered Edges
Precision Forming & Assembly Engineering：

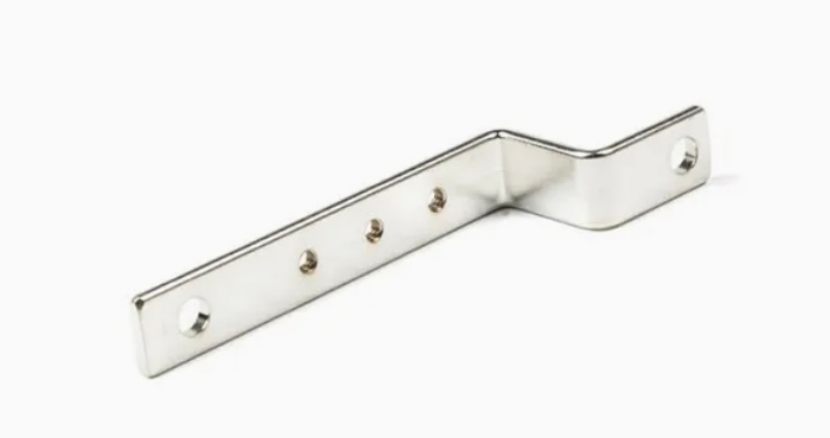

- L-shape / Z-shape /
- 3DbendingTight assembly
- toleranceStable mechanical structure
Used in:
- BESS cabinet internal layout
- Battery module interconnection

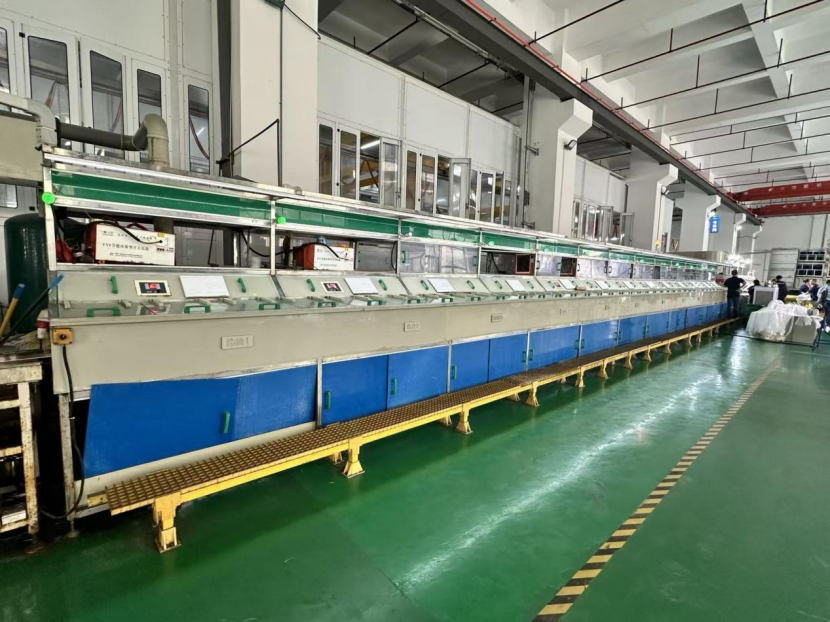

Surface Treatment Options
Through professional surface treatment technology, it improves electrical conductivity and corrosion resistance to ensure stable electrical performance in a high-current environment.
Available Surface Treatment Options：

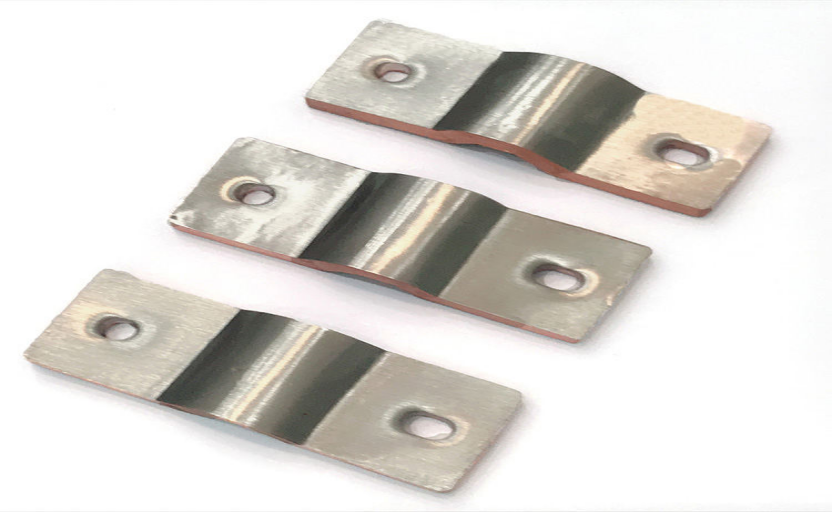

Tin plating (standard protection)
Nickel plating (high corrosion resistance)
Silver plating (high conductivity)
Insulated Copper Busbar System
We provide insulated busbar solutions designed for high-voltage energy storage systems up to 1500V.
Available Insulation Treatment Processes：

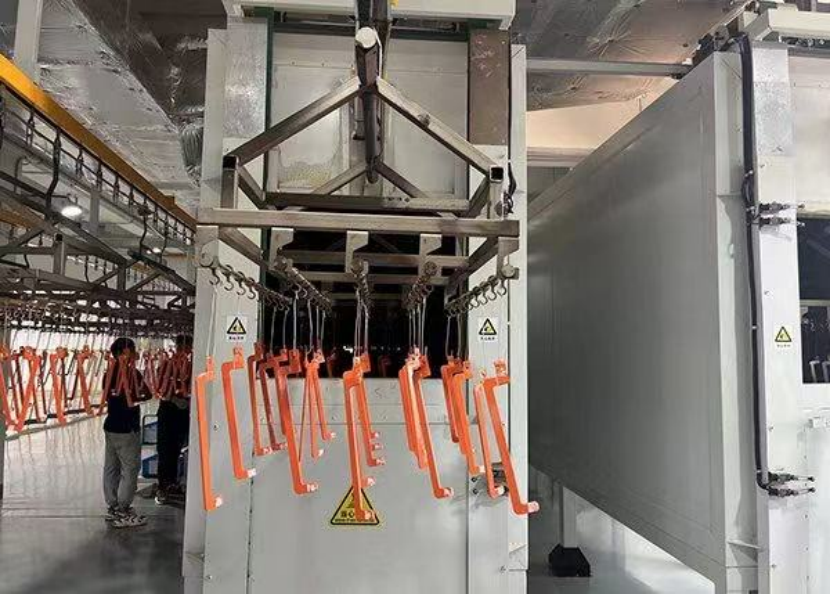

Epoxy powder coating

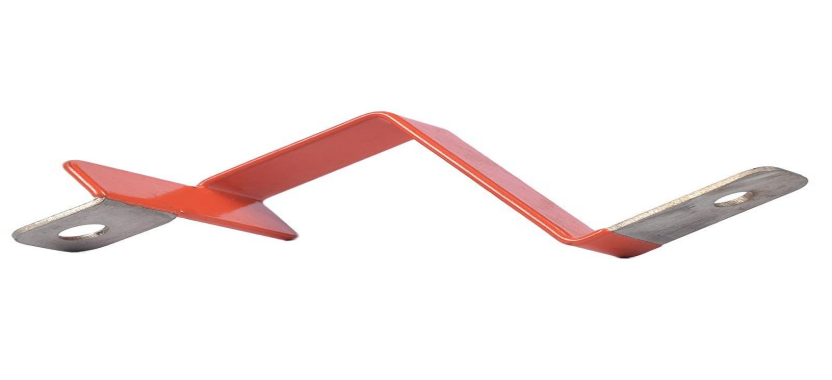

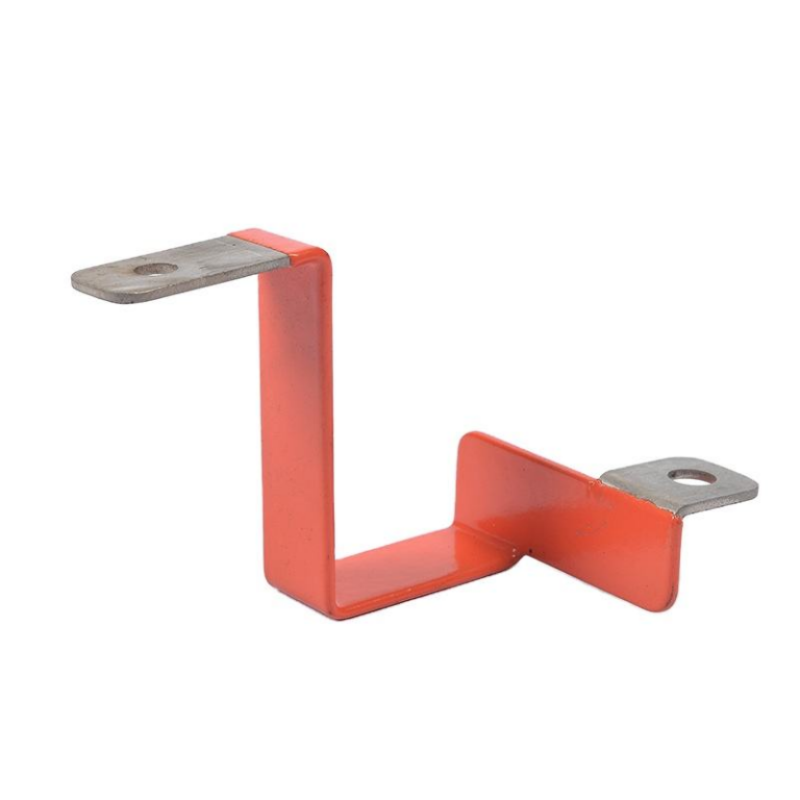

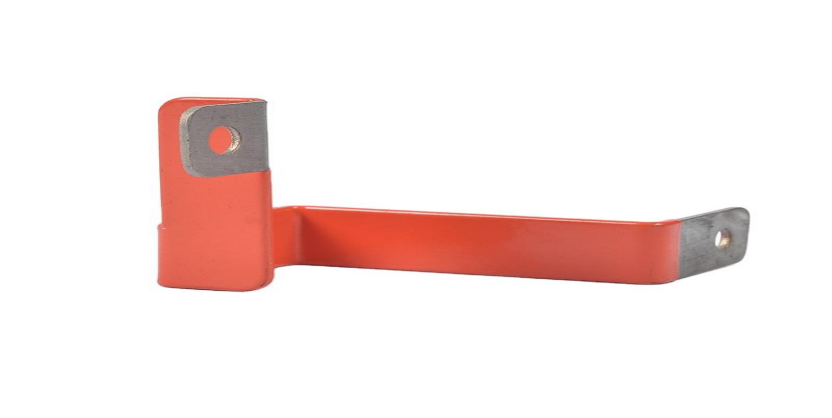

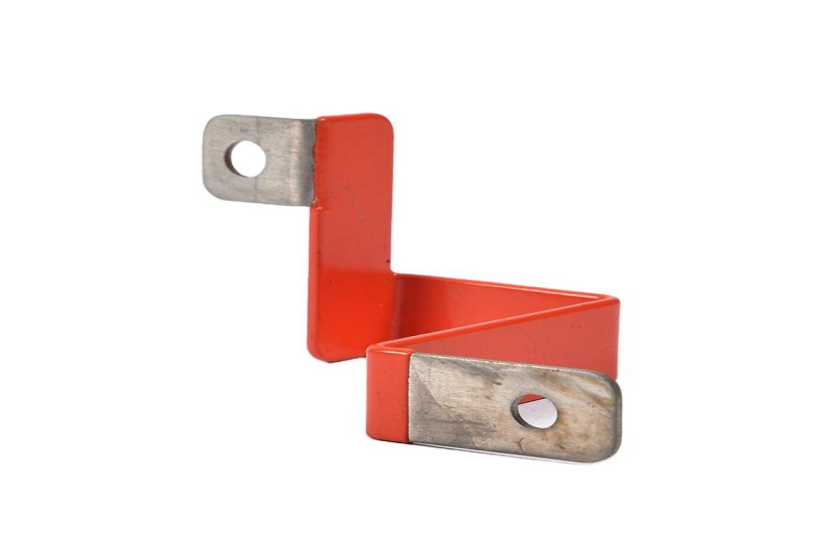

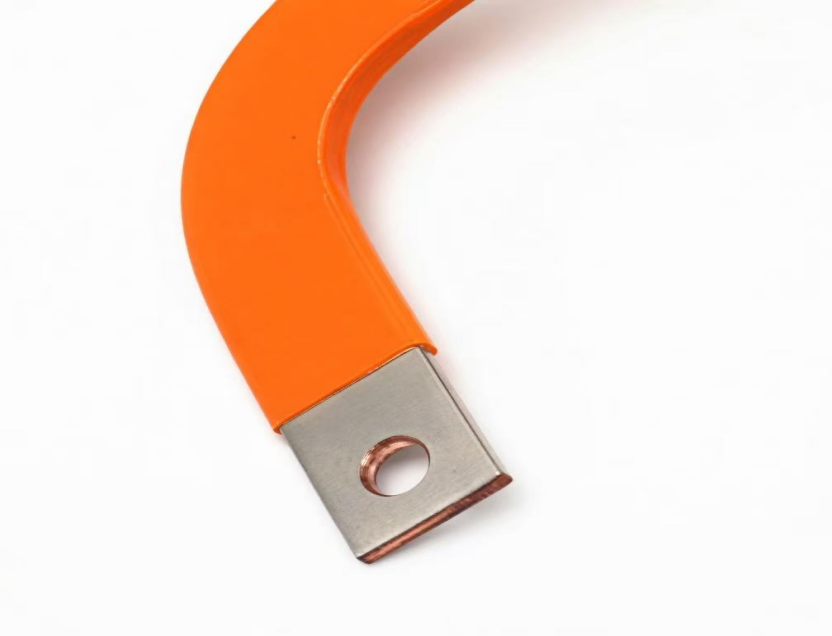

Epoxy powder coated copper busbar with custom Z-bend geometry, fully insulated except precision-cut terminals.
Uniform, pinhole-free epoxy coating on complex profiles, with consistent coverage even on sharp corners and edges
Clean terminal cutouts with no coating overhang, and wrinkle-free insulation on tight-radius bends.
High-adhesion epoxy insulation with no peeling at edges, paired with burr-free copper terminals for reliable connections.

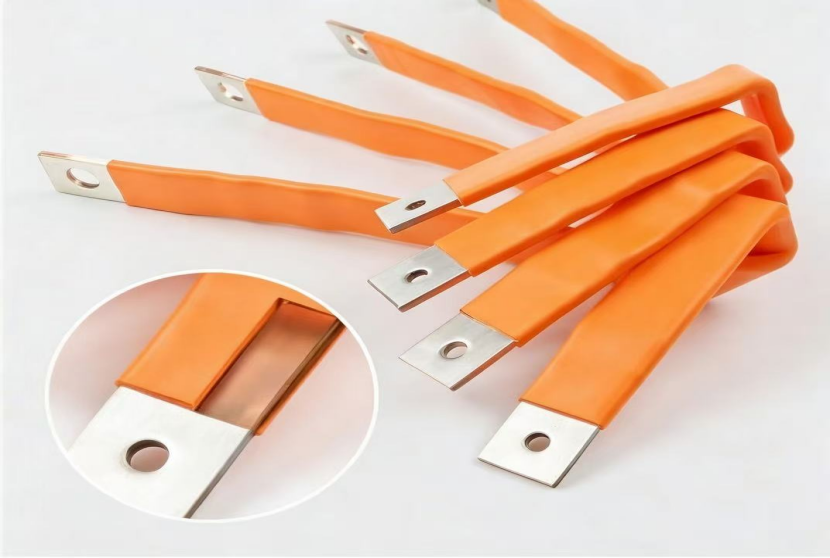

PVC dip coating

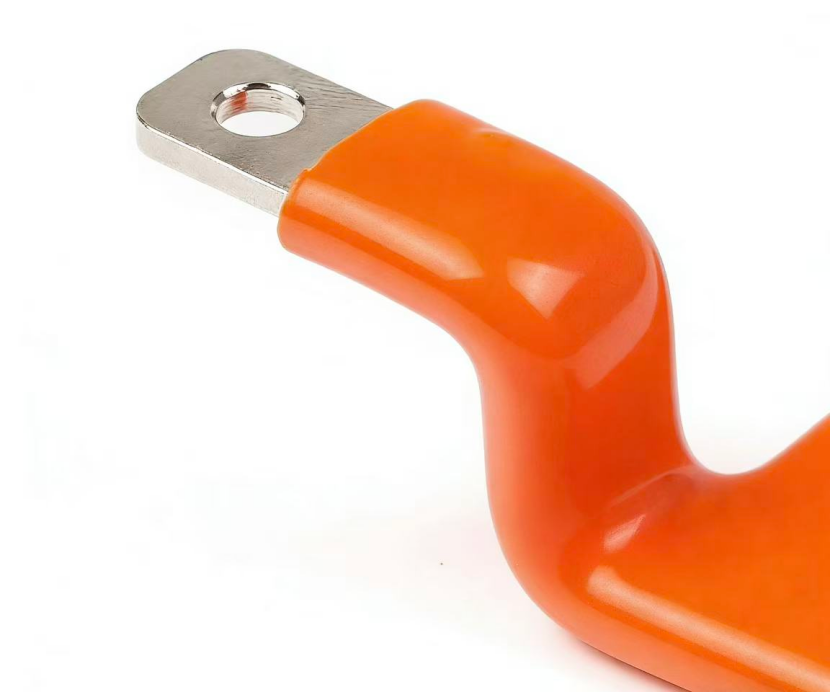

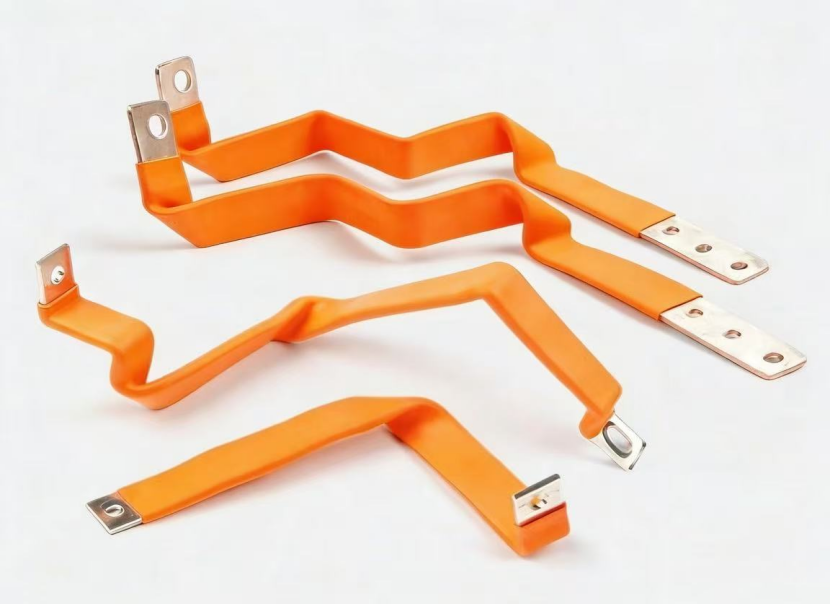

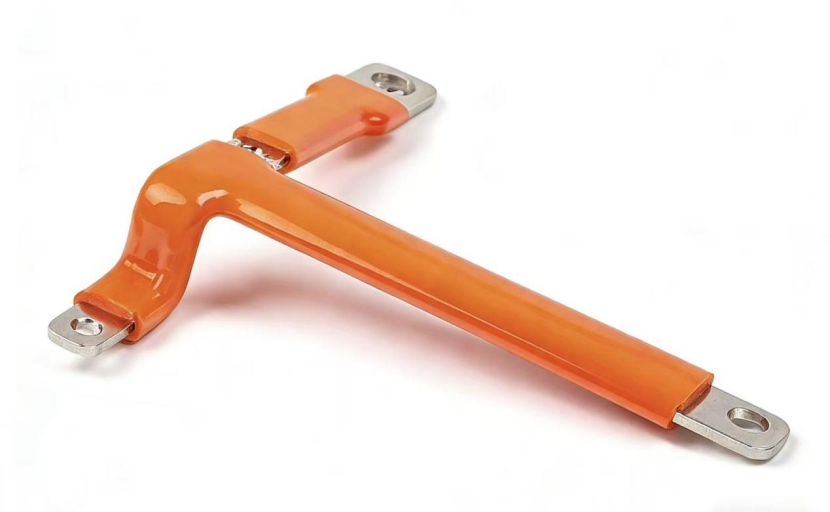

Full PVC dip-molded insulation on shaped copper busbar, seamless coverage over the entire profile, with precision-exposed terminals for easy installation.

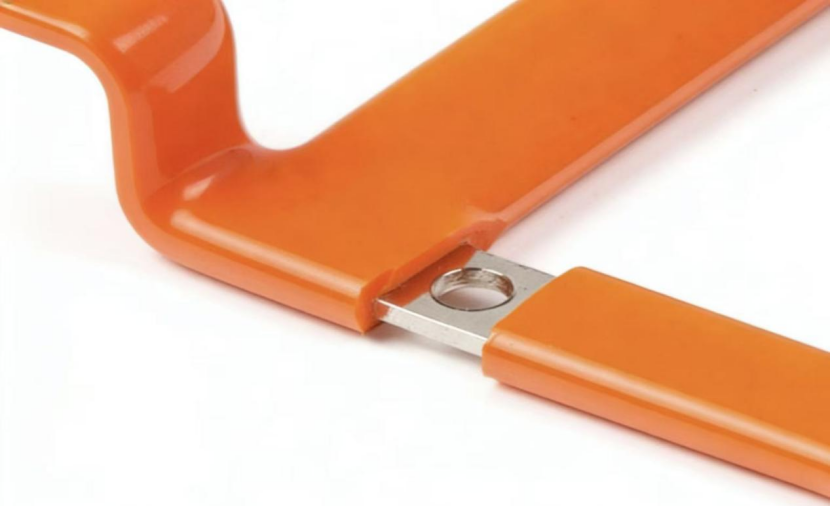

Clean, cut-back insulation at terminals, with no coating overhang or burrs, ensuring flat, reliable contact
Clean, cut-back insulation at terminals, with no coating overhang or burrs, ensuring flat, reliable contact

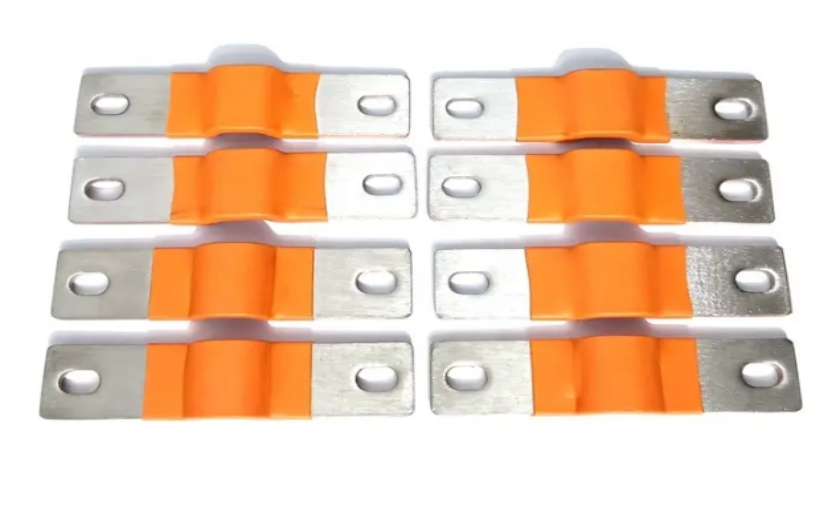

Heat shrink insulation

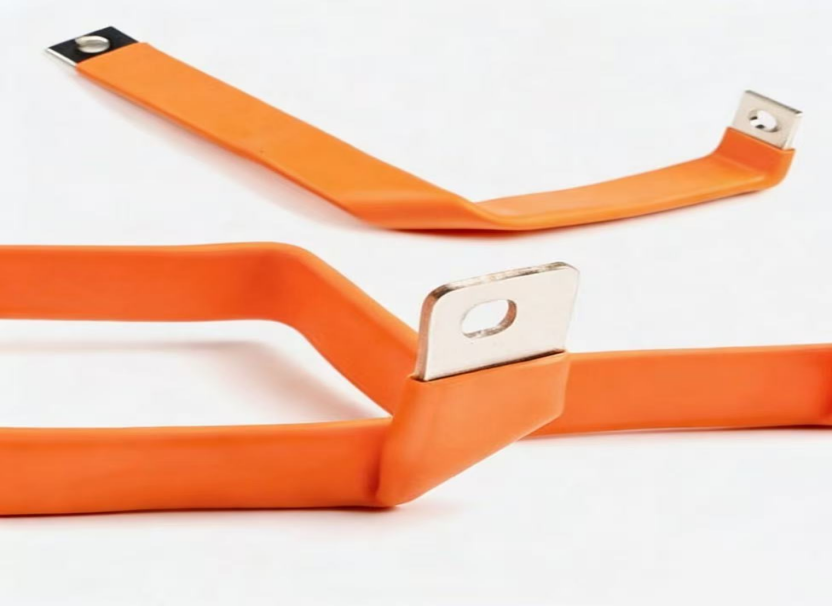

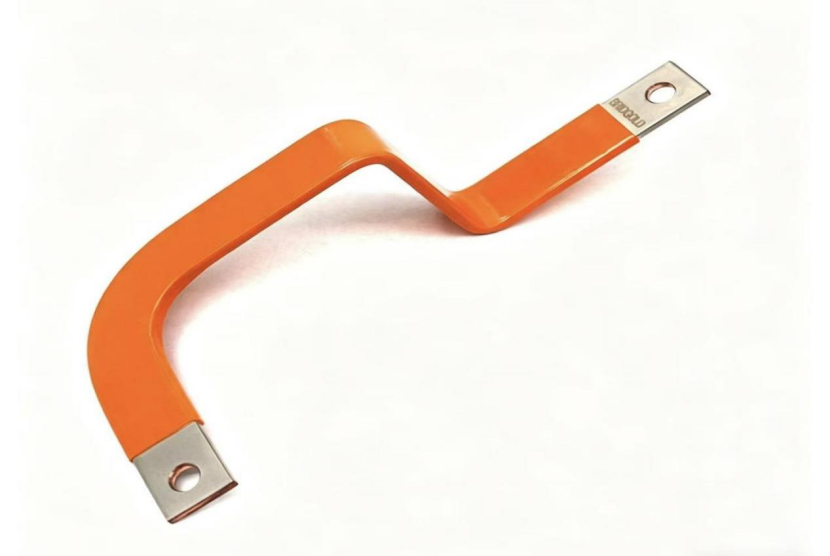

Custom formed copper busbars with full PE/PET heat shrink insulation, designed for complex 3D profiles.
Smooth, burr-free copper surface prevents insulation piercing, paired with tight-fitting heat shrink tubing for long-term reliability
Heat shrink tubing neatly terminated at terminals, with wrinkle-free coverage on sharp bends.
PA12 extruded insulation

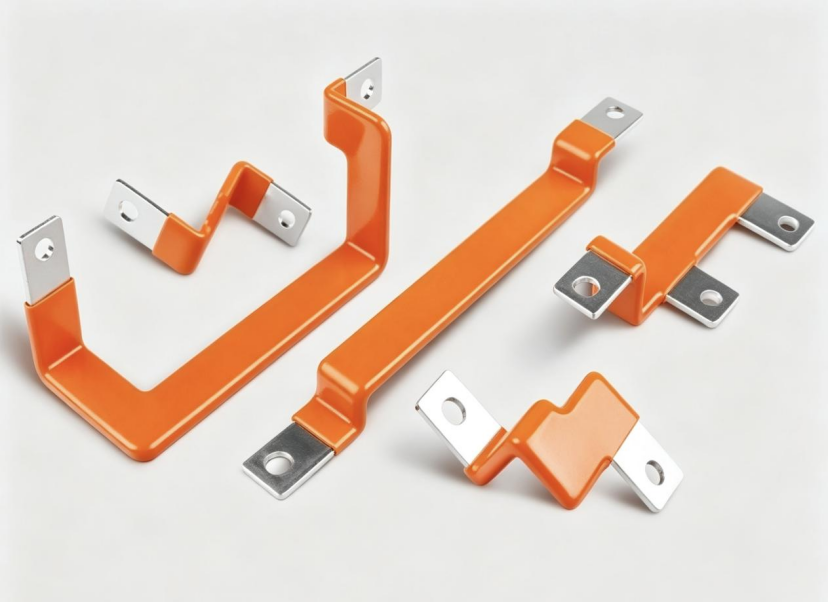

Custom bent copper busbar with seamless PA12 extruded insulation, designed for high-vibration environments.
Precision-cut terminal ends with no coating damage, and wrinkle-free PA12 insulation on tight bends.

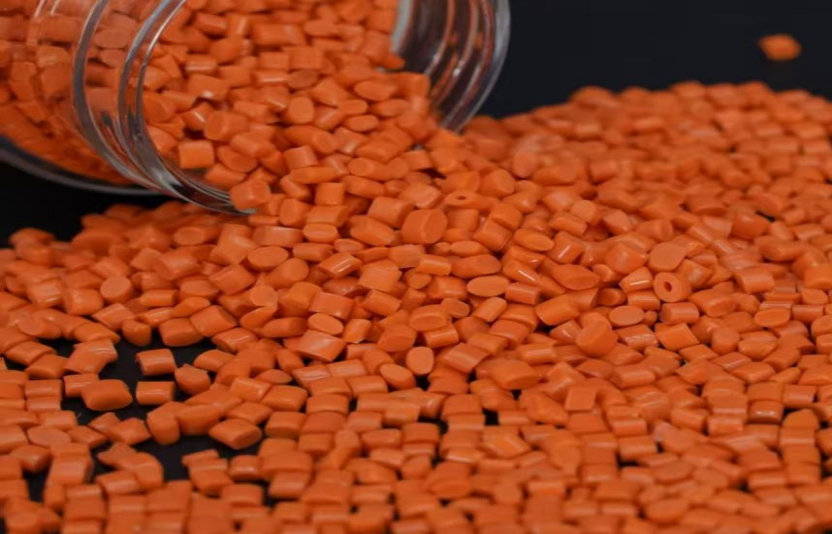

Made from high-grade PA12 raw material, offering excellent chemical resistance and mechanical strength.
Advantage：
- Electrical safety protection
- Anti-short circuit design
- Suitable for BESS cabinet integration

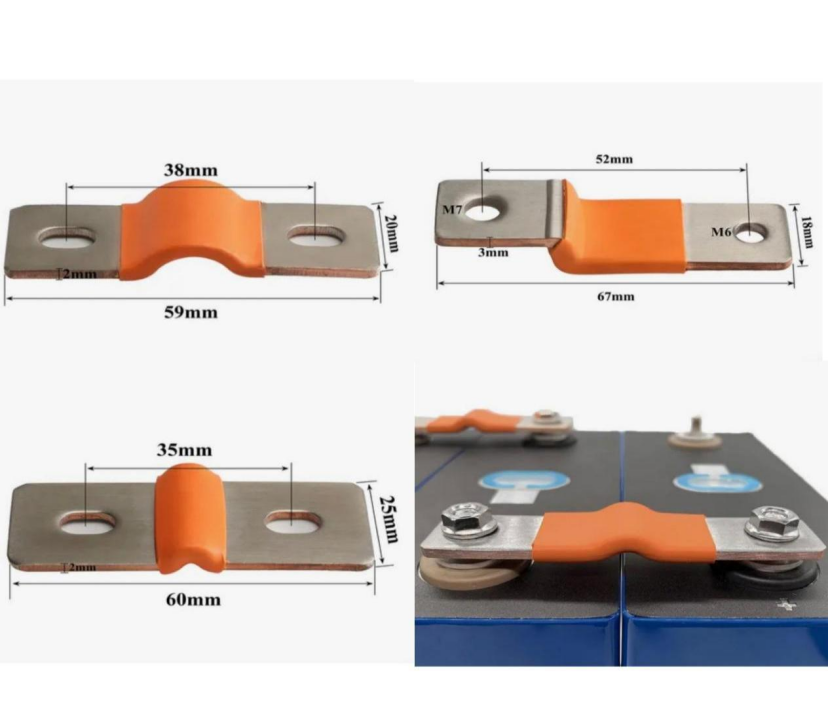

Flexible & Laminated Busbar
Designed for vibration resistance and compact battery module structures.
Product case:

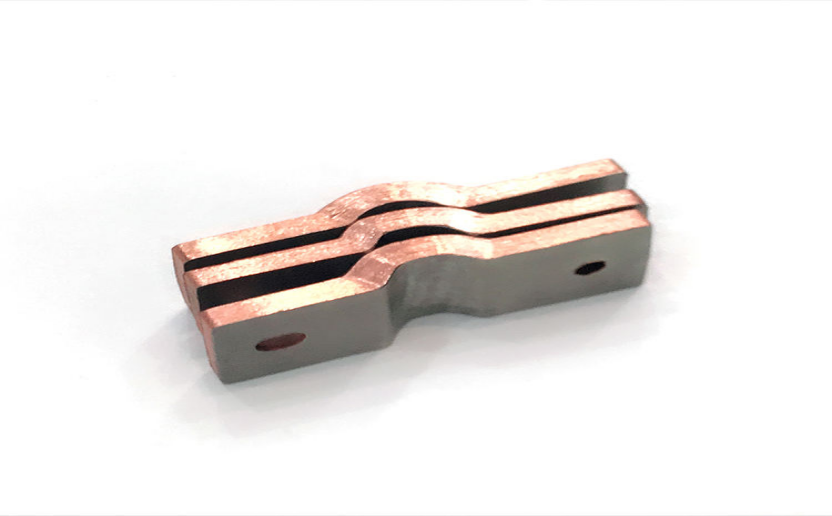

Multi-layer laminated copper design for high flexibility and low resistance, ideal for absorbing vibration and thermal expansion.
Laminated flexible copper busbars with smooth, deburred edges and precision-punched holes
Used in:
- EV battery packs
- Energy storage modules
Manufacturing Process

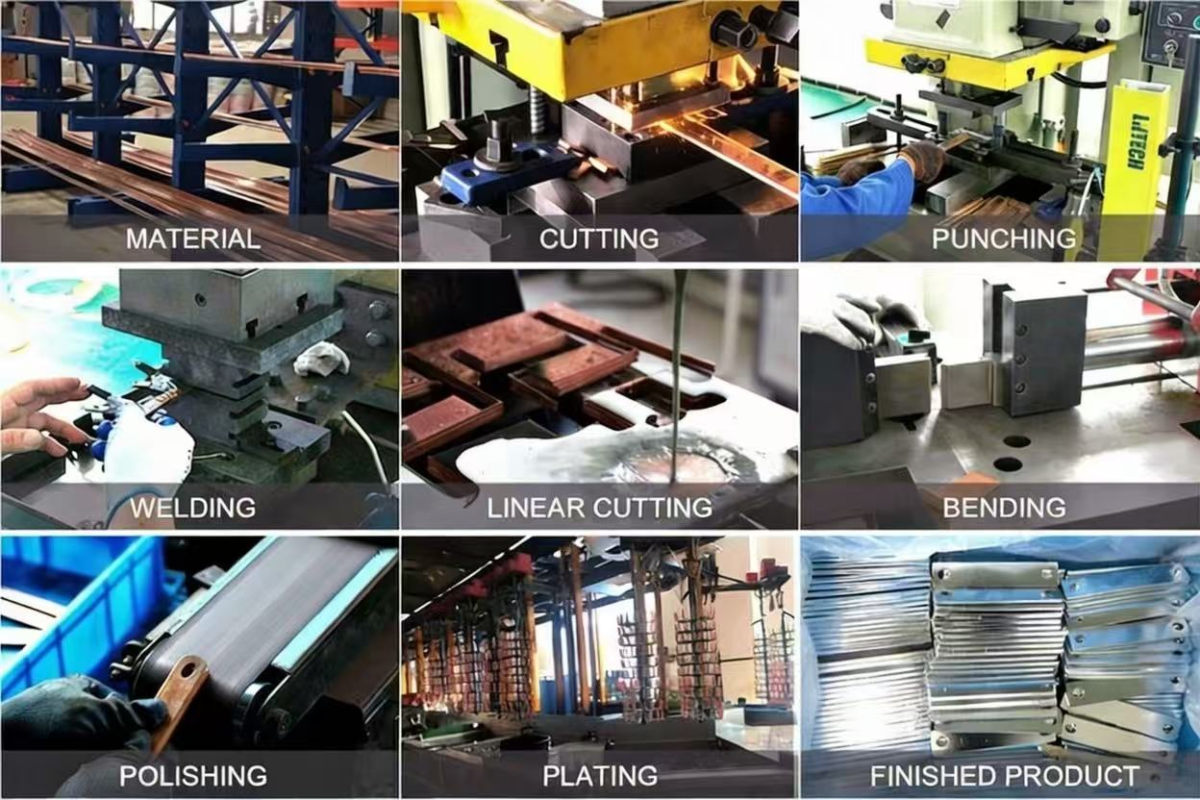

Copper Busbar Manufacturing Process
From Raw Material to Finished Delivery — 8 Key Steps
Have a Project in Mind?
Send us your drawing or requirements.
Our engineer will review and respond within 12 hours.
