Precision Copper Busbars & Conductive Components. From Prototype to Production in 7 Days.
Engineering-Driven Factory In Huizhou, China. Specializing In Low-MOQ, High-Complexity Customized Busbar & Conductive Components Solutions For ESS & EV.
Engineering & Manufacturing Capabilities

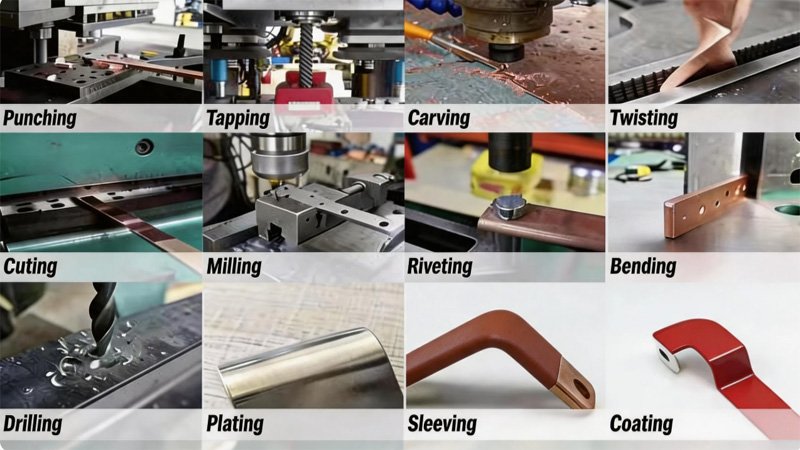

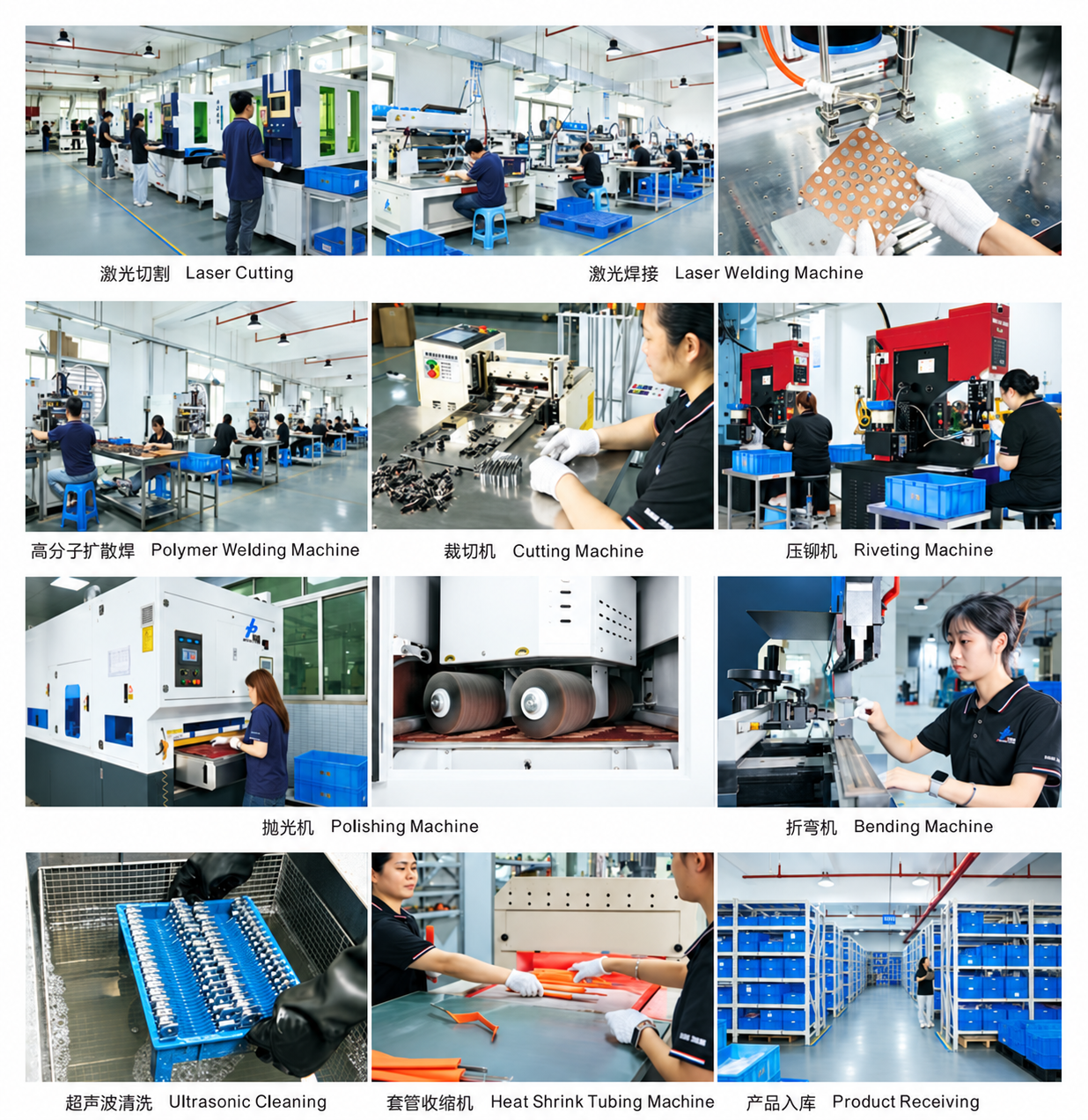

From CAD drawing review and DFM support to cutting, welding, bending and finishing, our team helps turn custom copper busbars and drawing-based conductive components into production-ready parts.
DFM SupportDrawing review before production
Agile ManufacturingLow-volume and repeat orders
Material TraceabilityRecords aligned with project needs
Fast ResponseEngineering follow-up within 12 hours
Engineering Support & DFM Optimization for Custom Copper Busbars

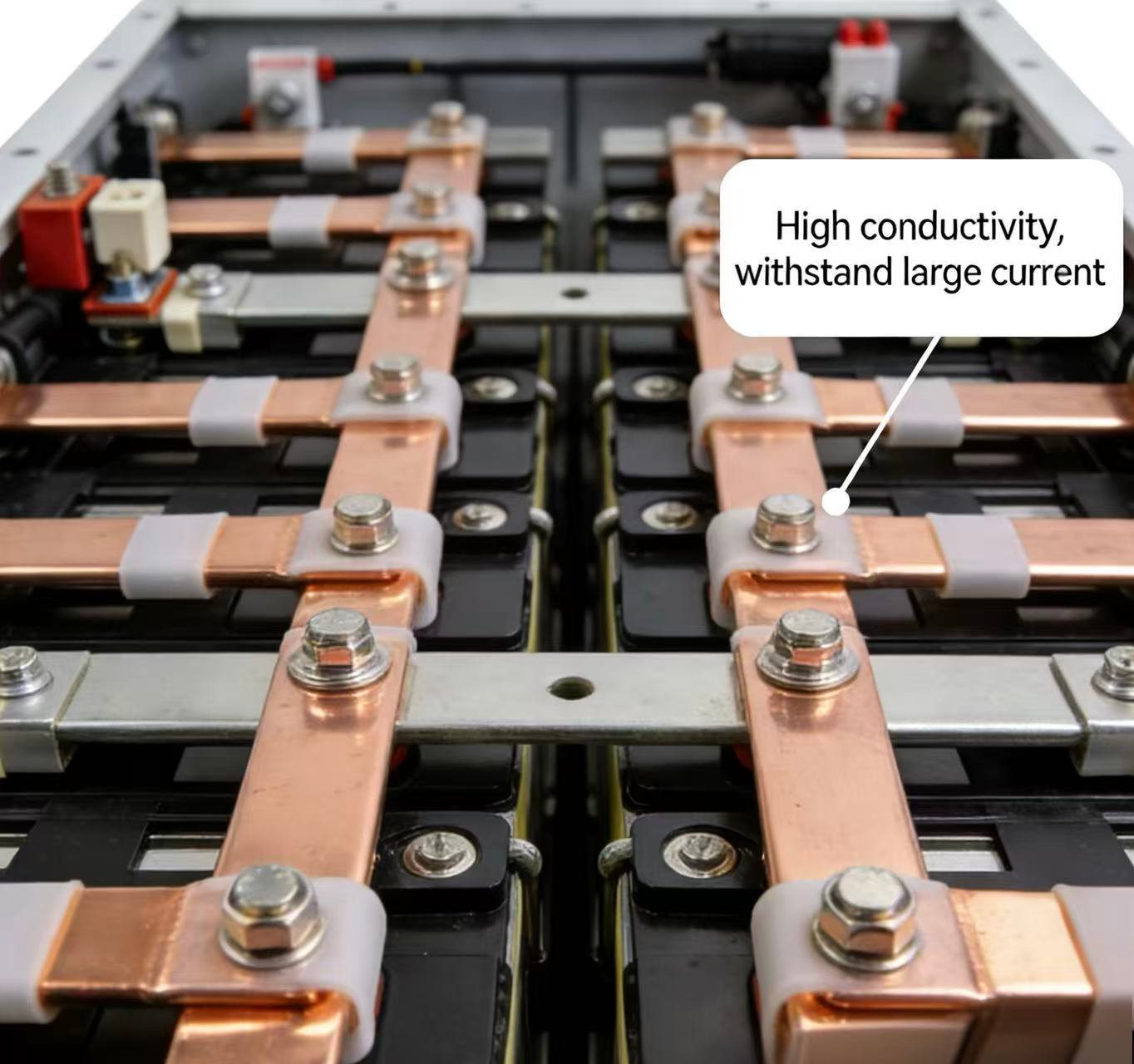

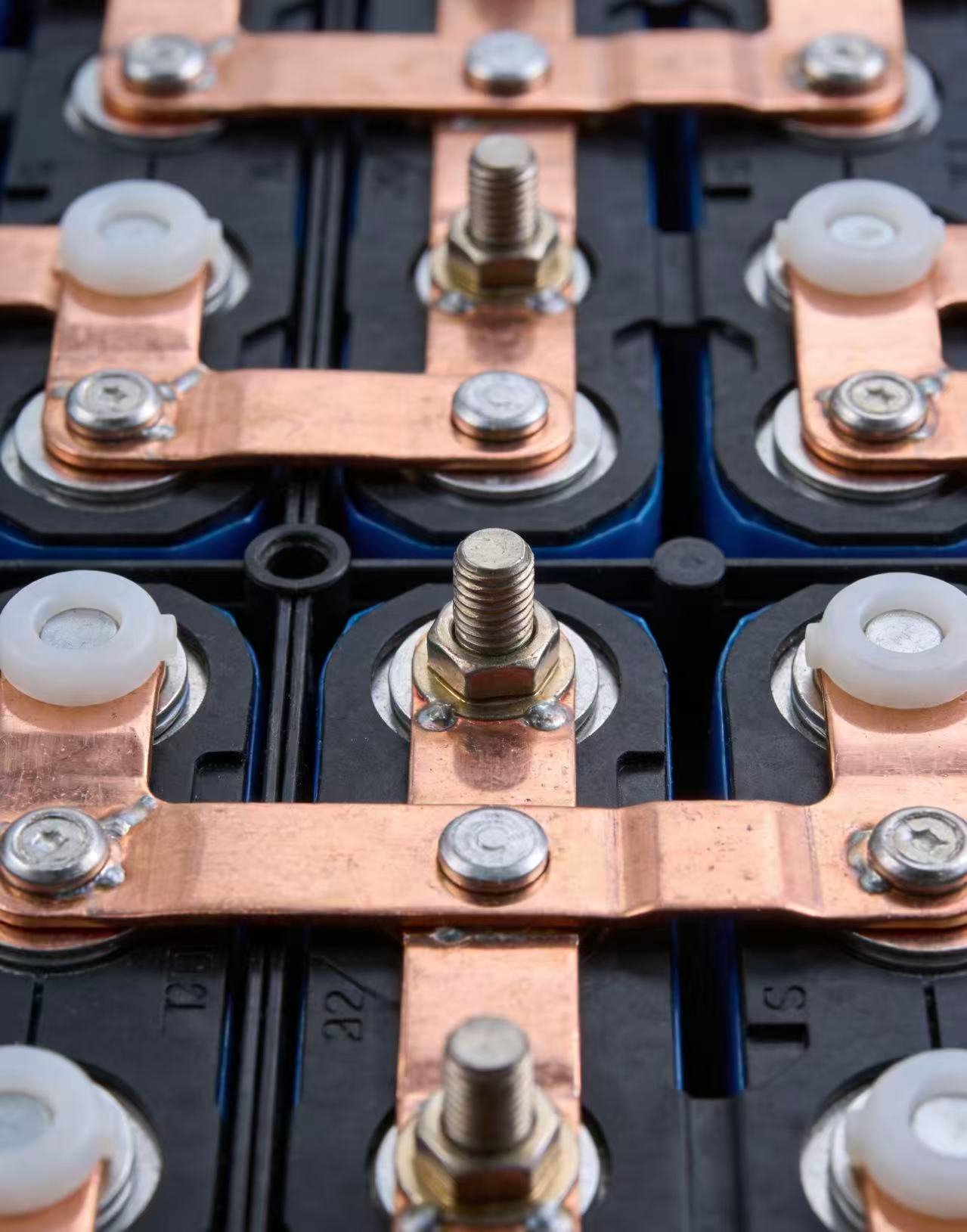

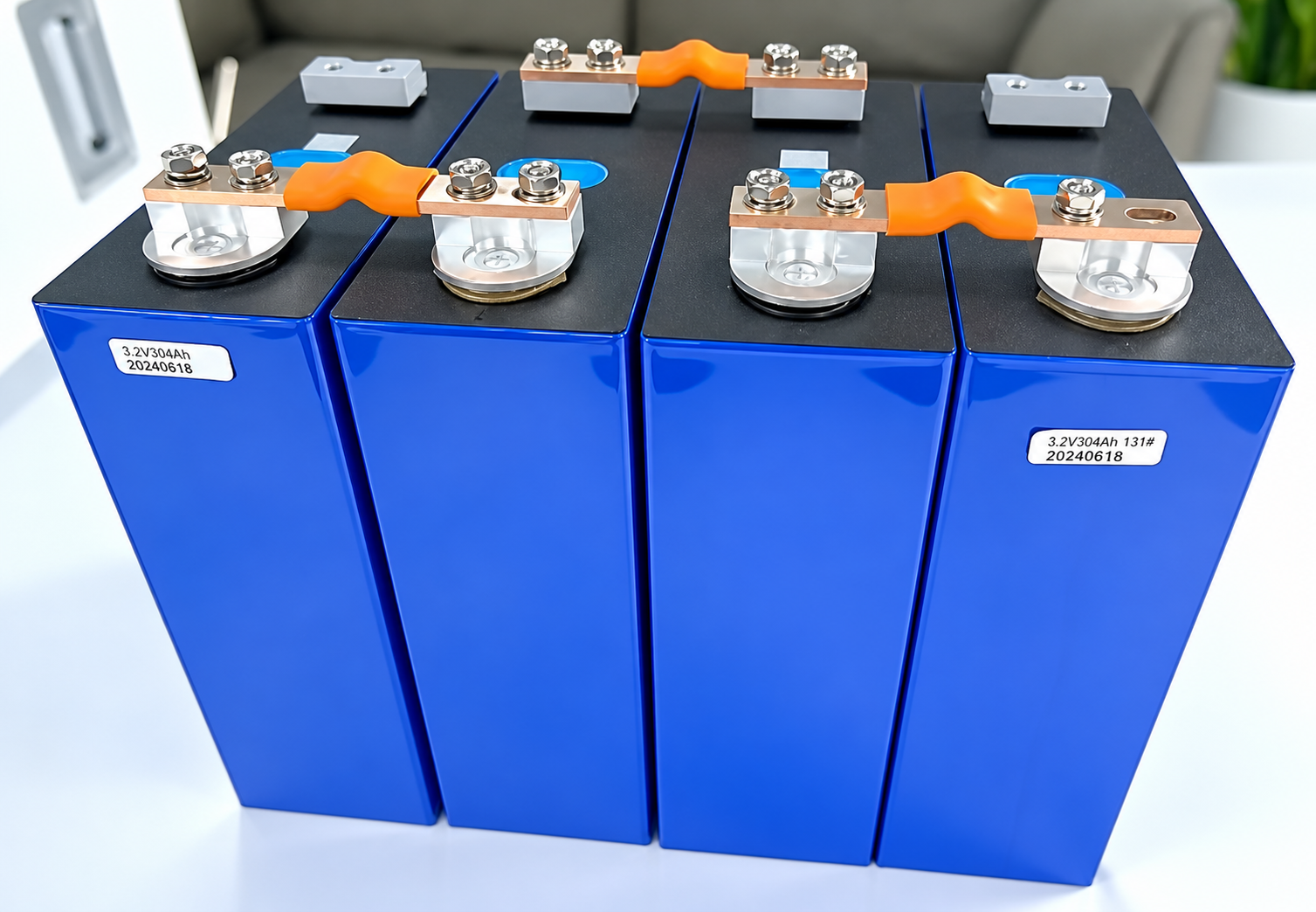

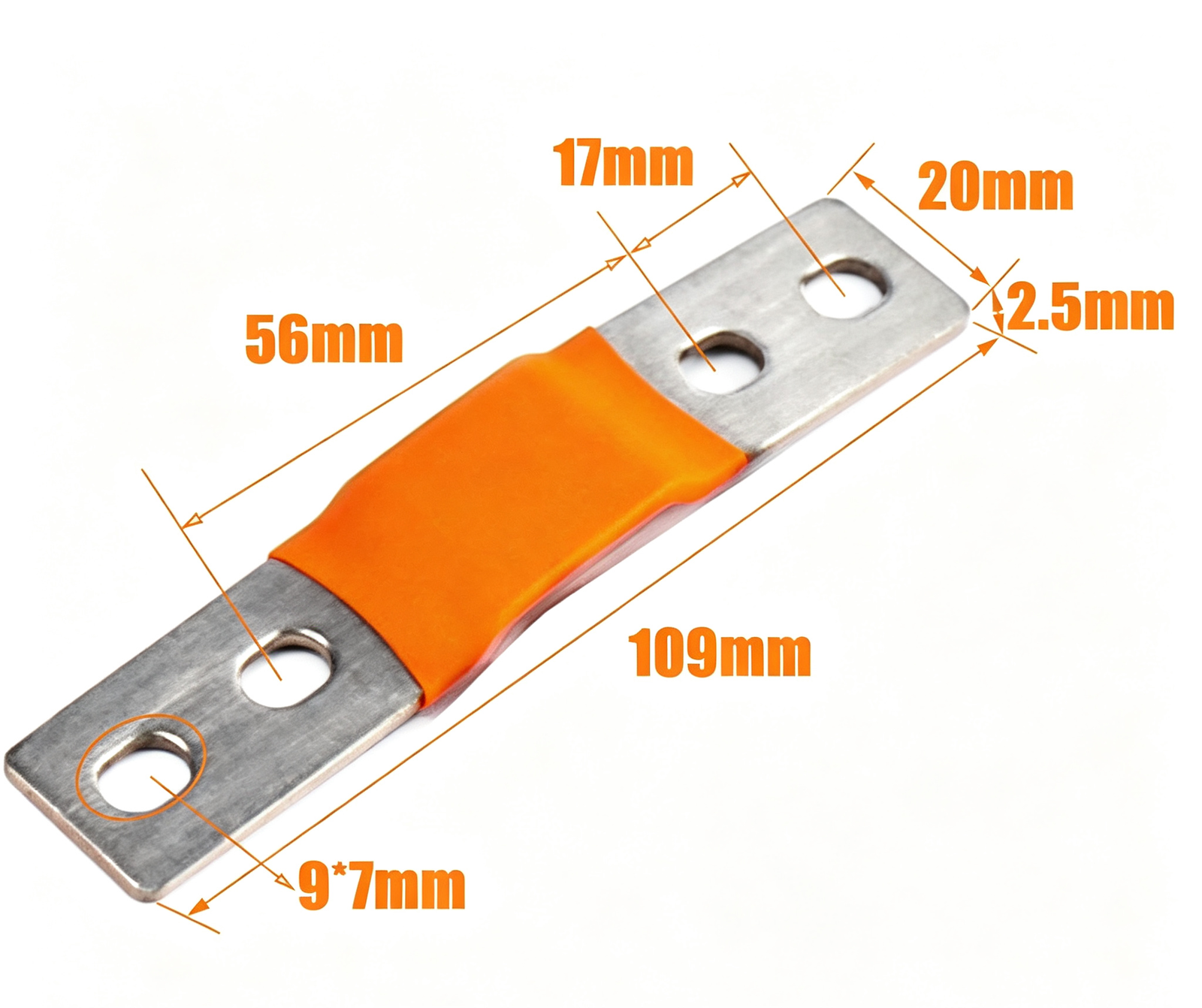

As a factory-direct copper busbar manufacturer in Huizhou, China, we review your CAD drawings before production and optimize bend radii, hole positions, and insulation coverage to cut cost, improve assembly fit, and ensure repeatable quality across BESS, 48V LiFePO4, and EV battery packs.

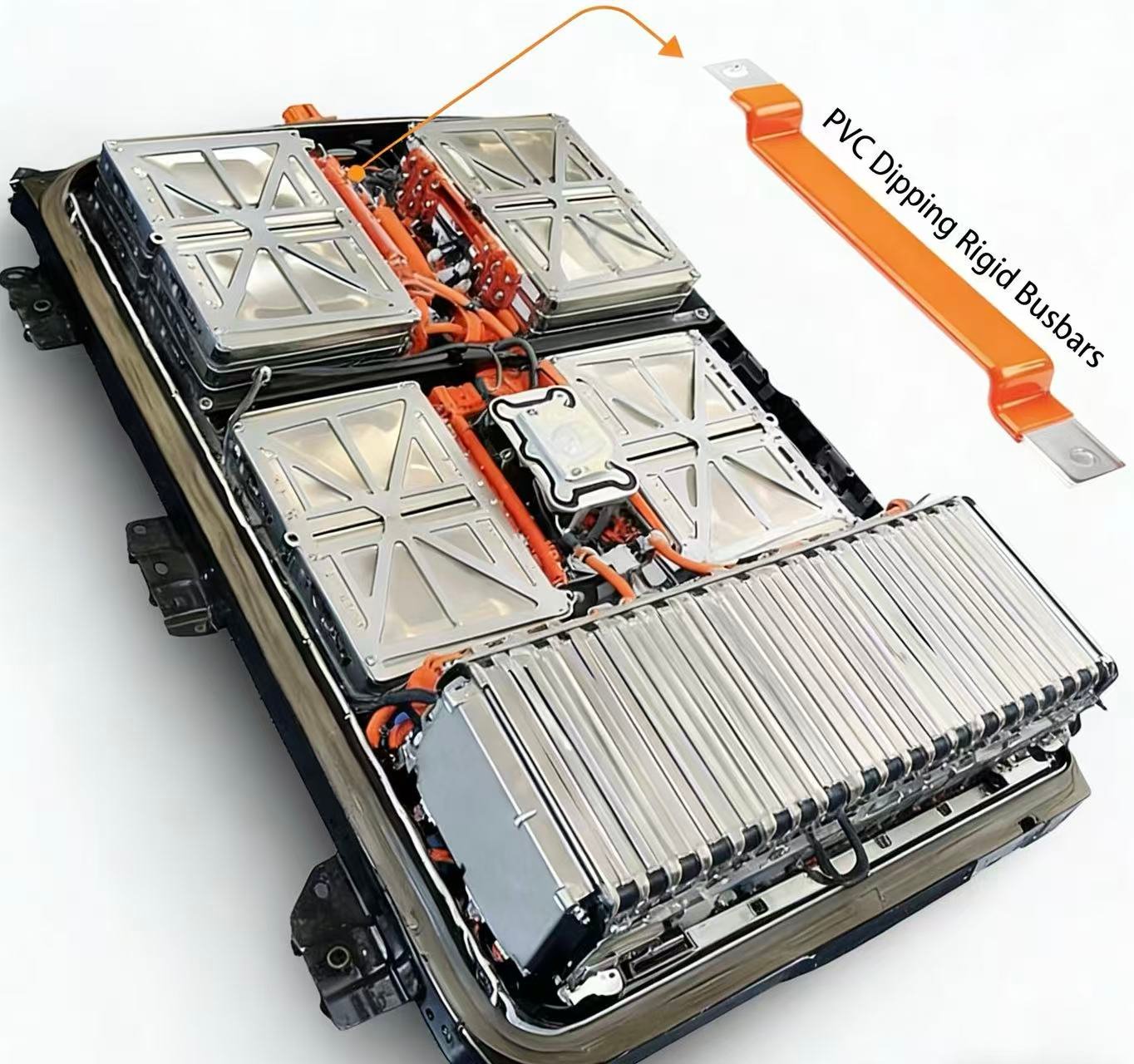

Typical specifications we handle: T2 copper, 0.5–5mm thickness, 10–120mm width, M4–M12 mounting holes, tin/nickel plating, and epoxy powder or PVC dip insulation for 600V–1000V applications.
Precision Manufacturing
From approved drawings to finished parts, we manufacture custom copper busbars and conductive components, with attention to dimensions, bends, surface finish and assembly fit.

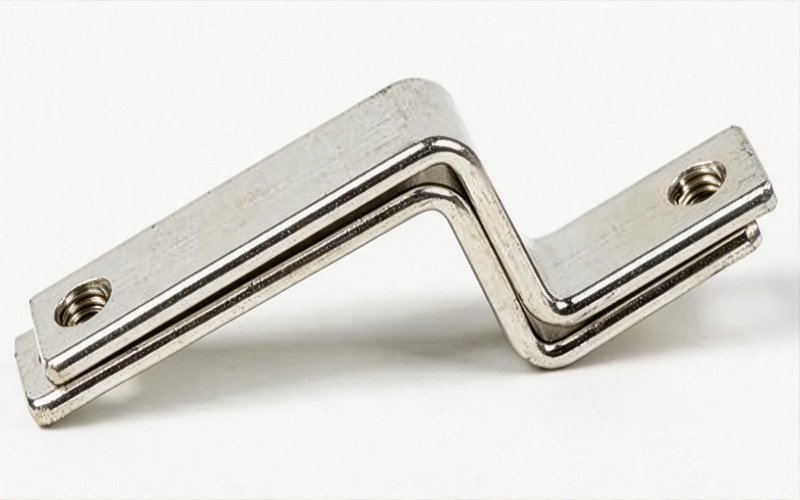

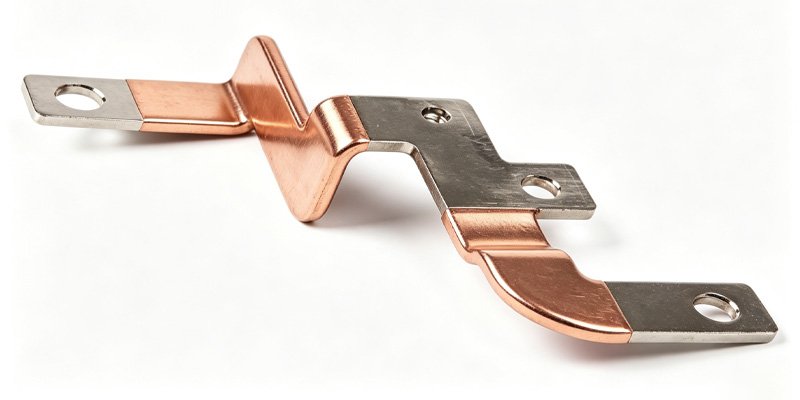

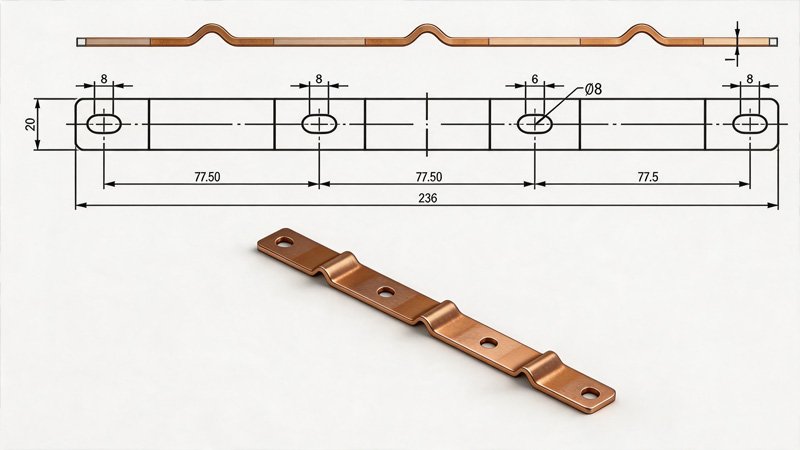

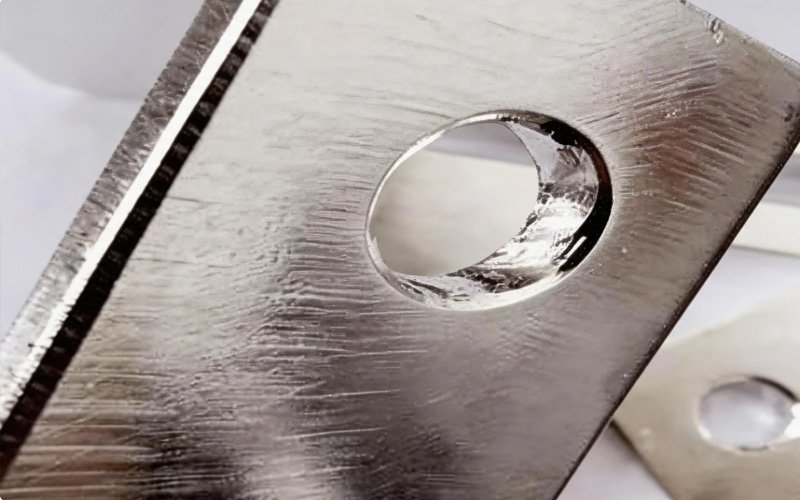

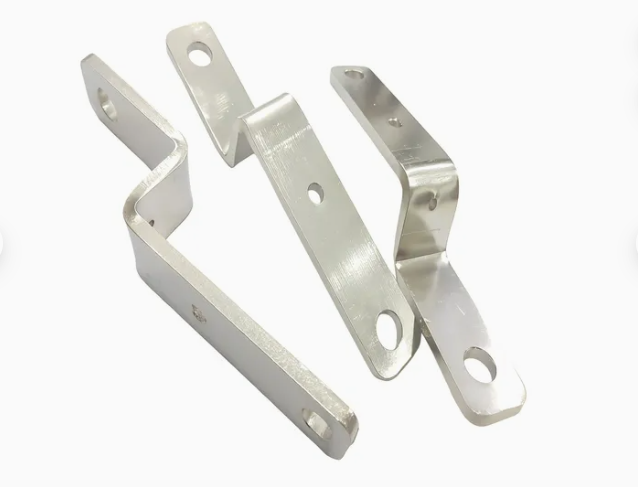

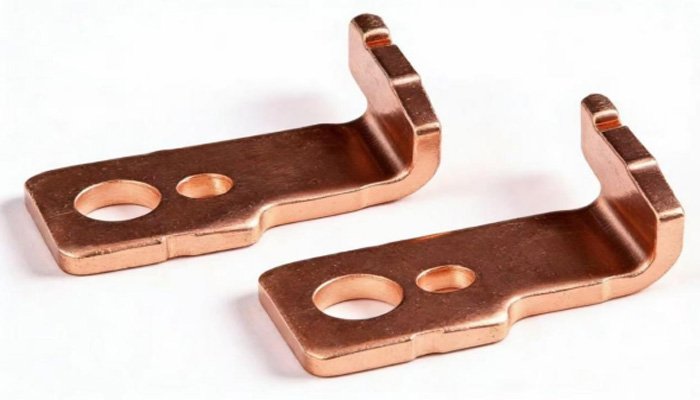

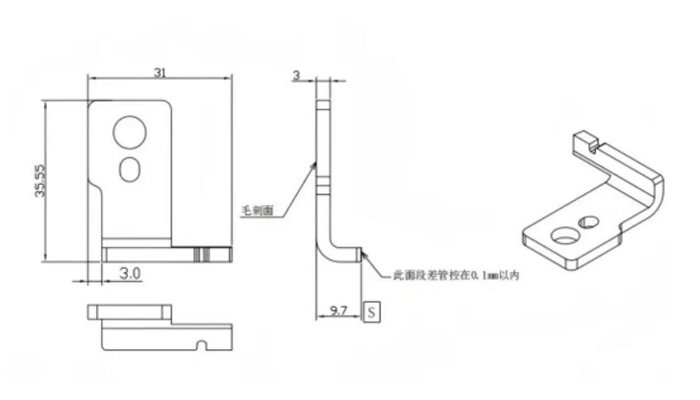

Bent Copper Terminal
Drawing-defined hole placement and bend geometry carried through to the finished copper parts.

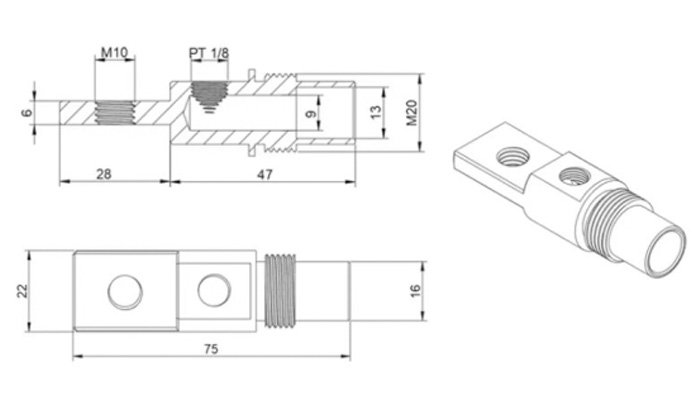

Threaded Copper Connector
Thread and mounting features shown in the drawing, followed by the manufactured connector.

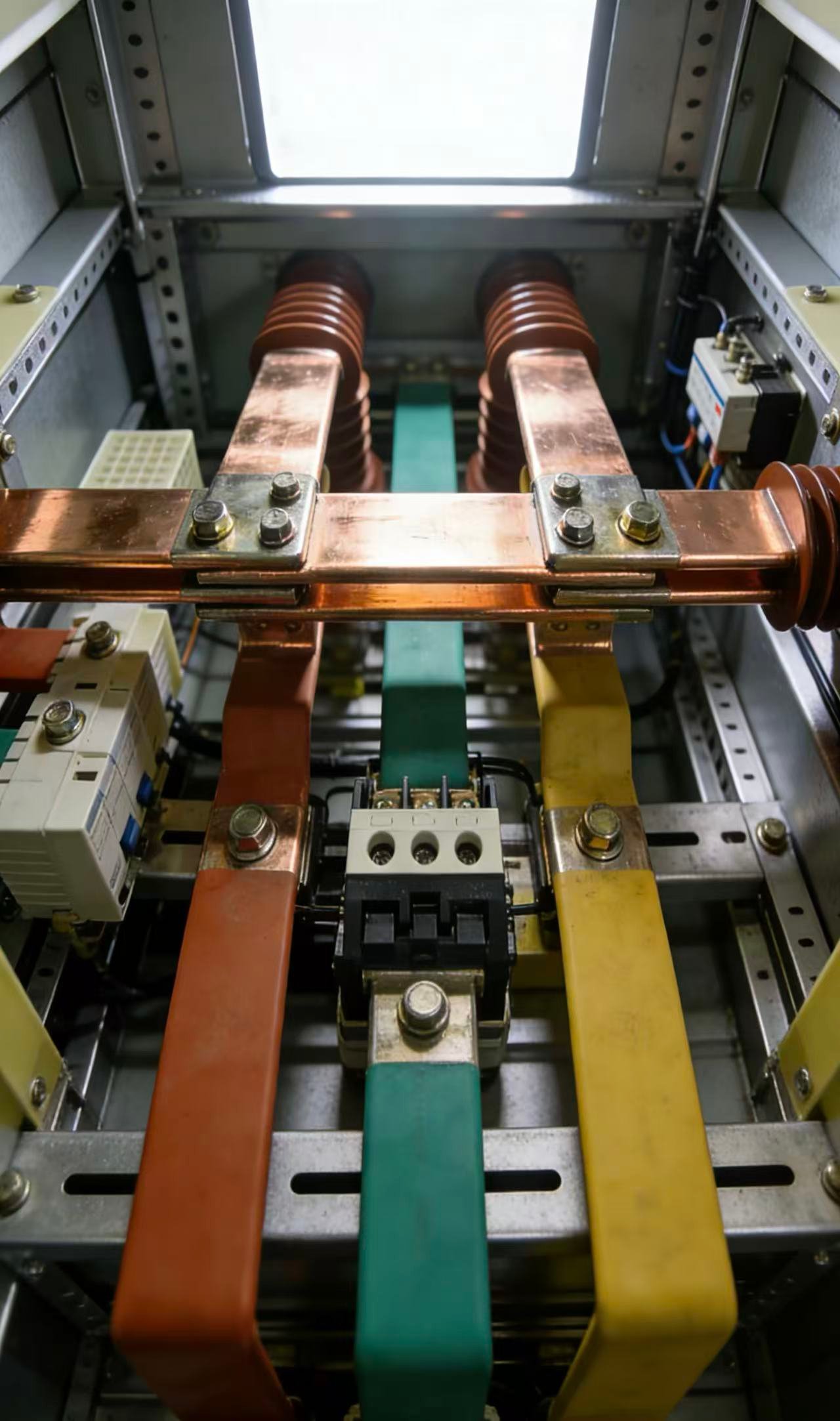

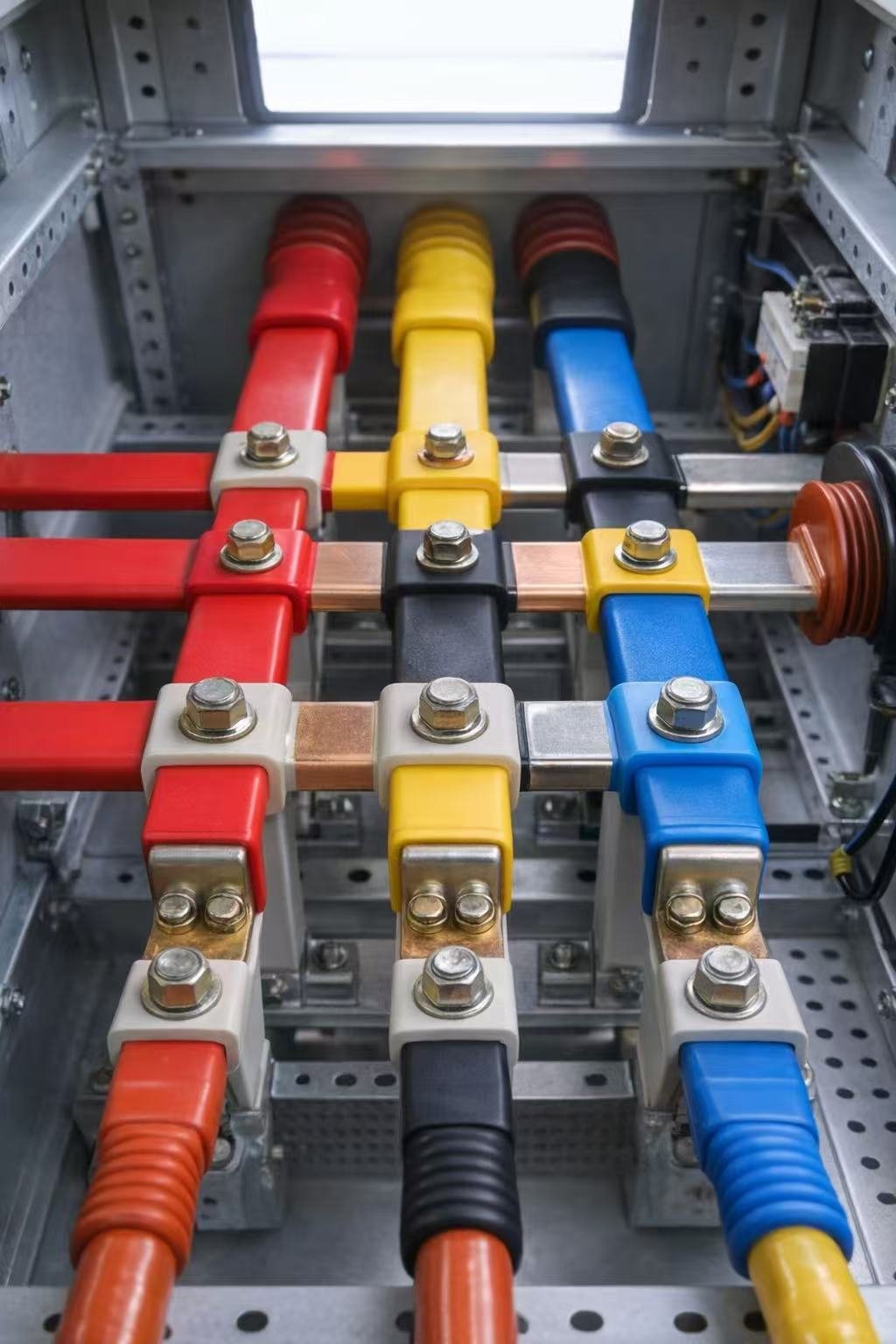

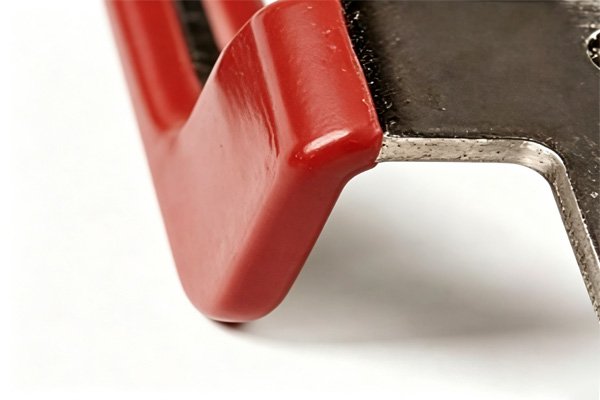

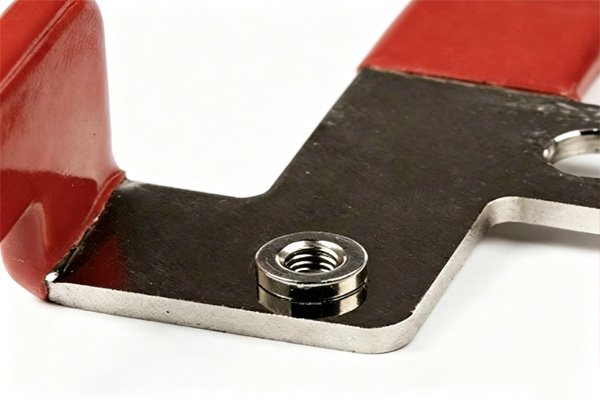

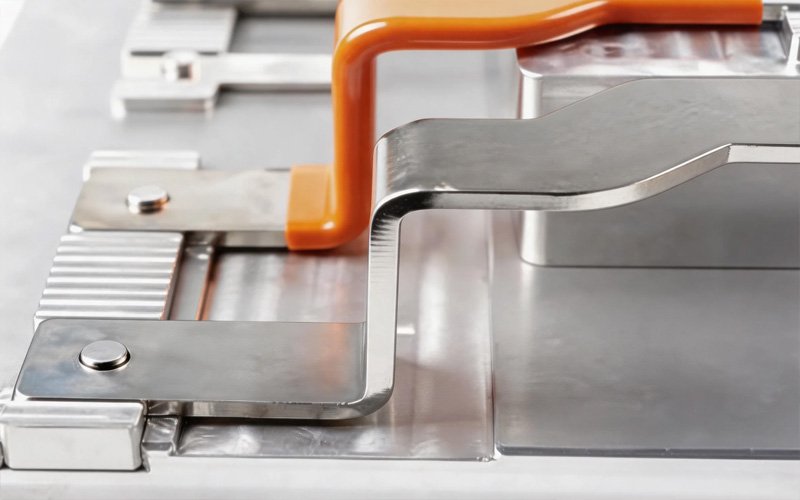

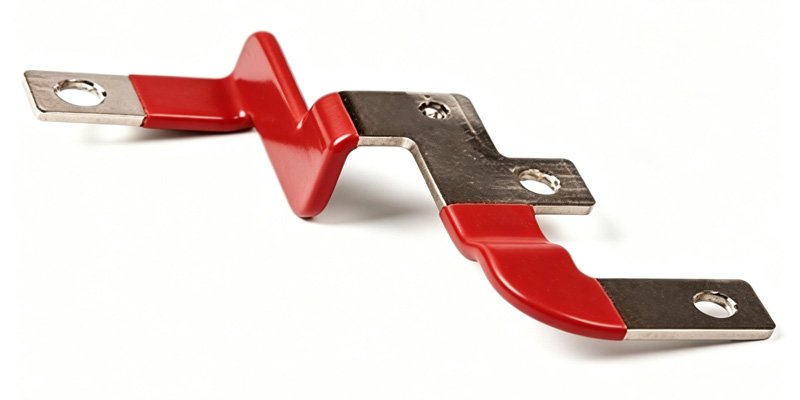

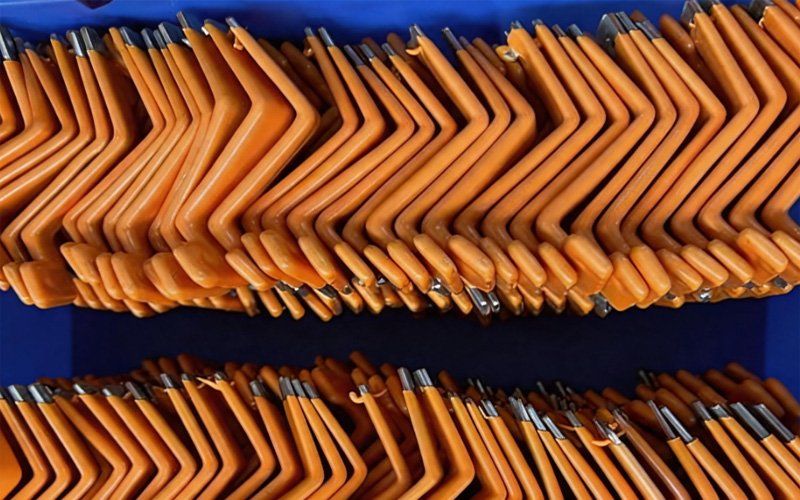

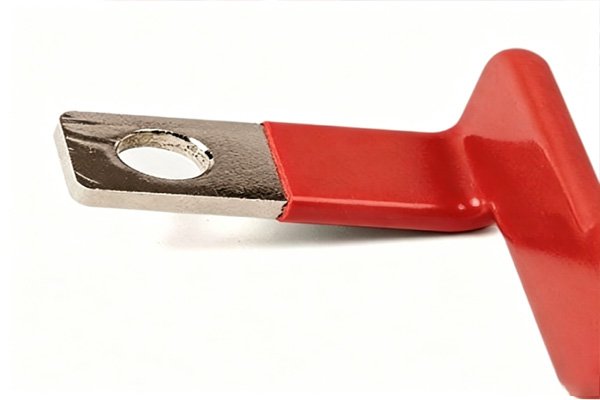

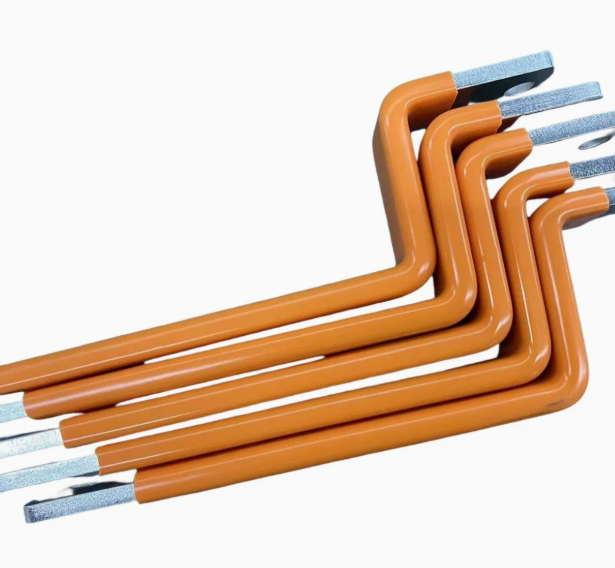

Insulation & Terminal Finishing

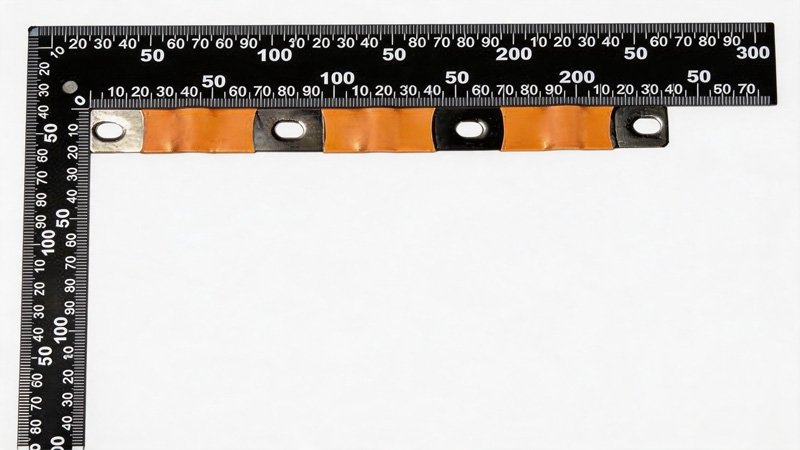

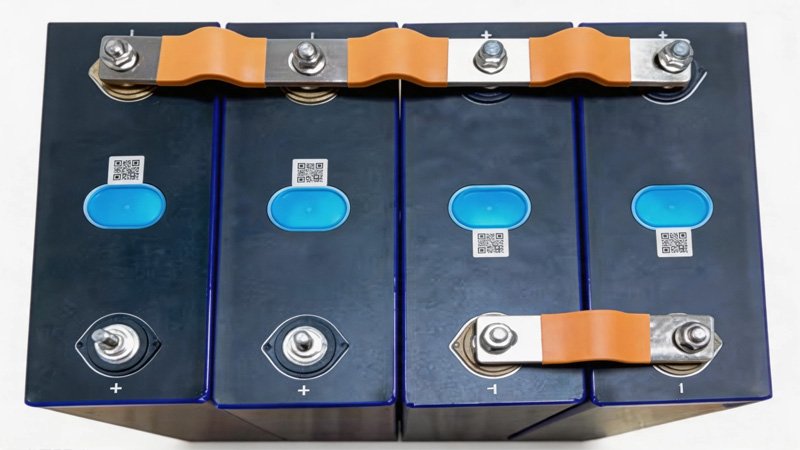

Compare bare and insulated copper busbars, then examine insulation coverage, coating transitions and exposed terminals for bolted electrical connections.

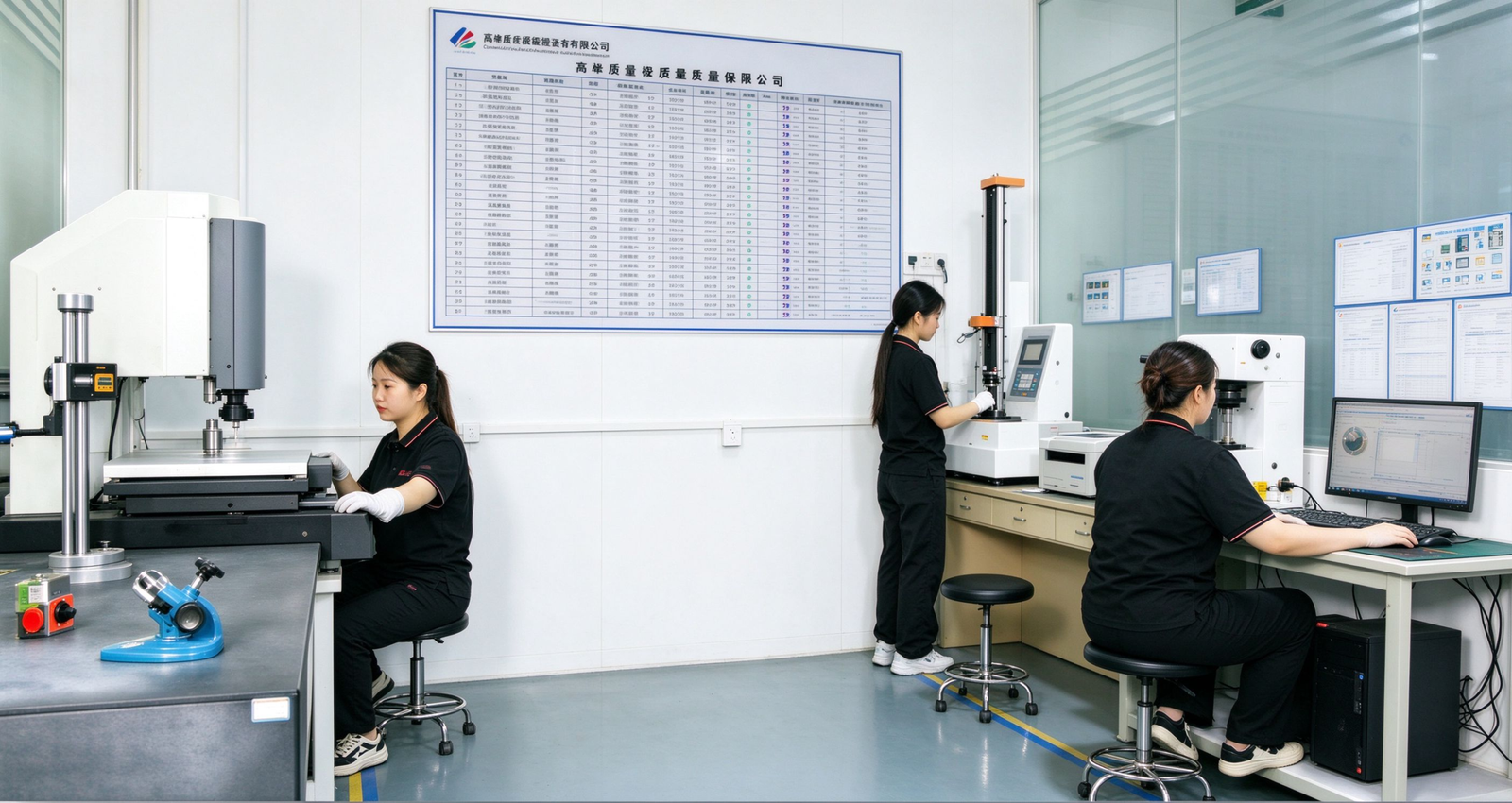

Five-Stage Quality Control for Custom Copper Busbars
From incoming materials to shipment, our inspection workflow connects drawing requirements with production checks and finished-part verification.

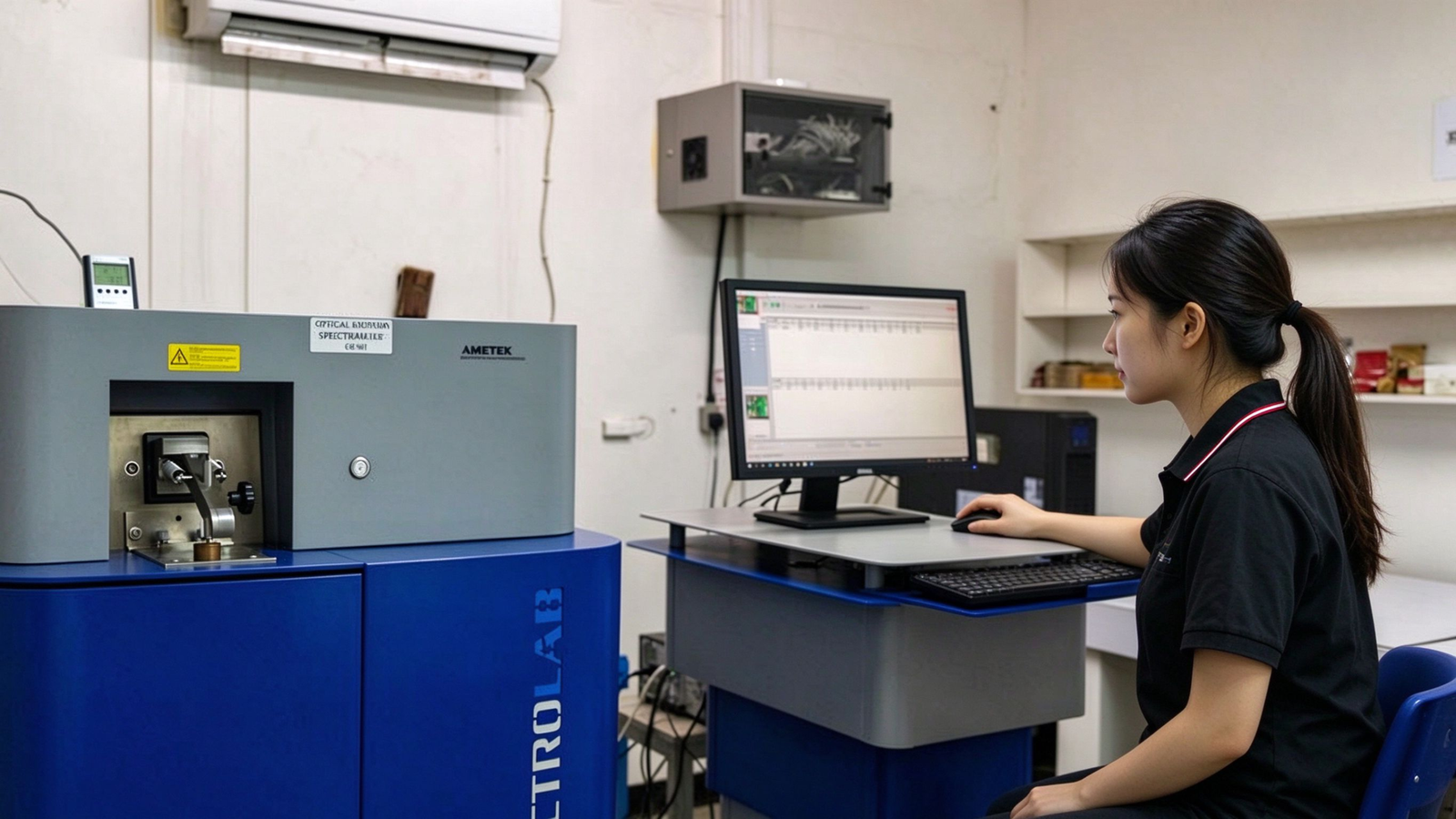

01 · IQC
Incoming Material Inspection
Check incoming metal materials against the specified grade and purchasing requirements before release to production.

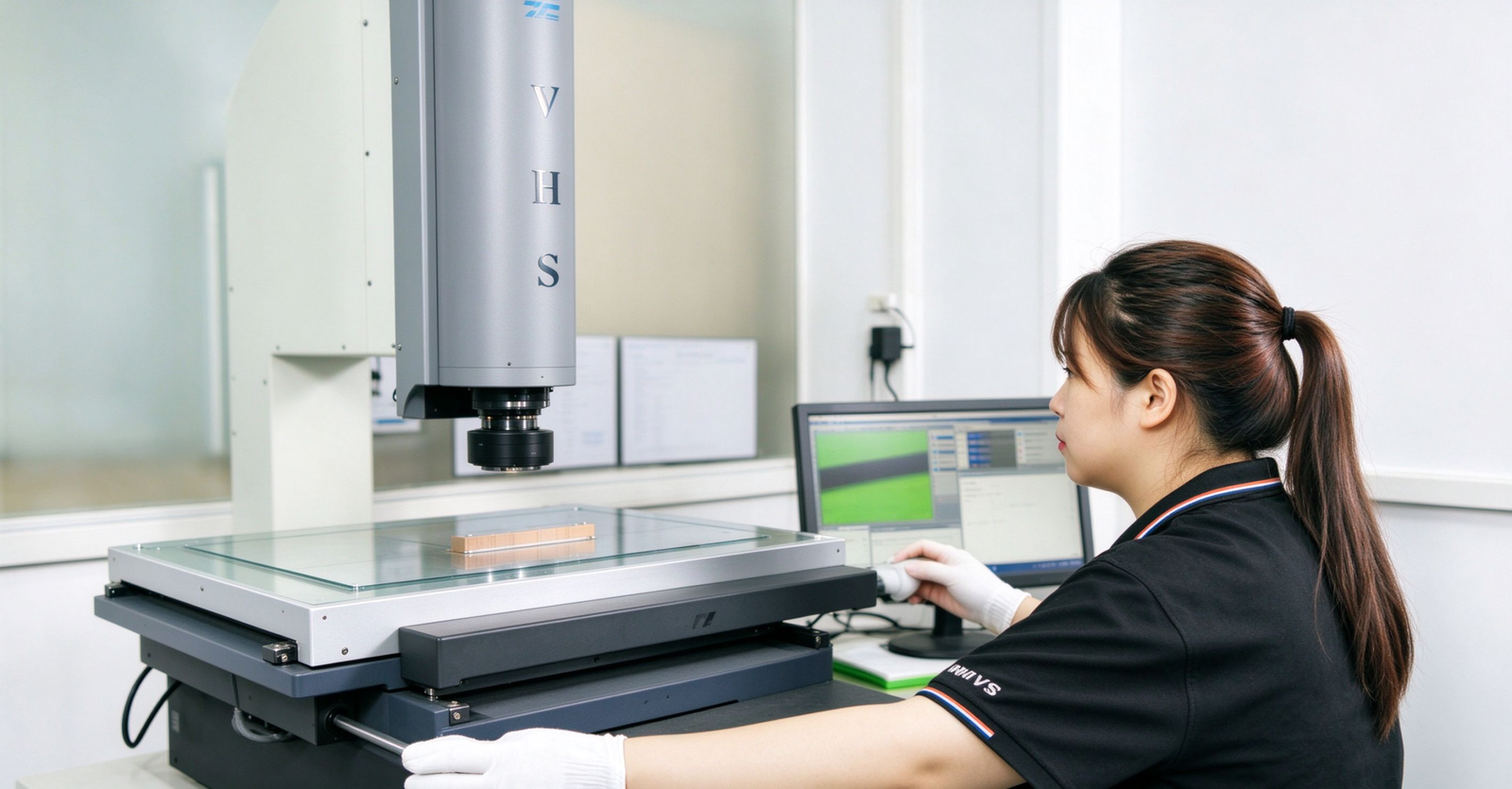

02 · FAI

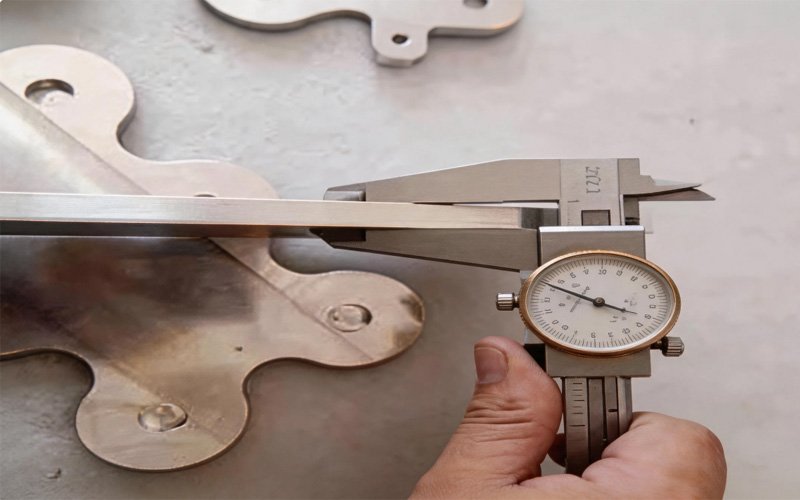

First Article Inspection

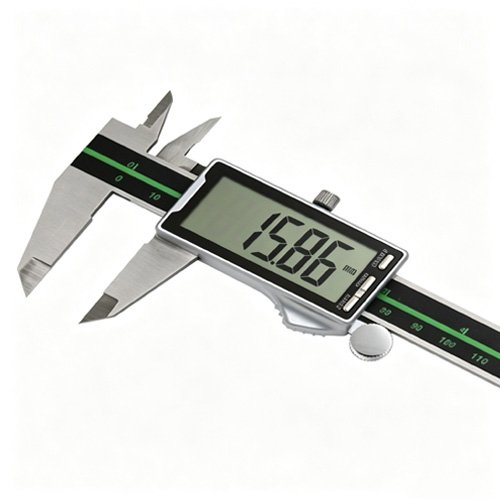

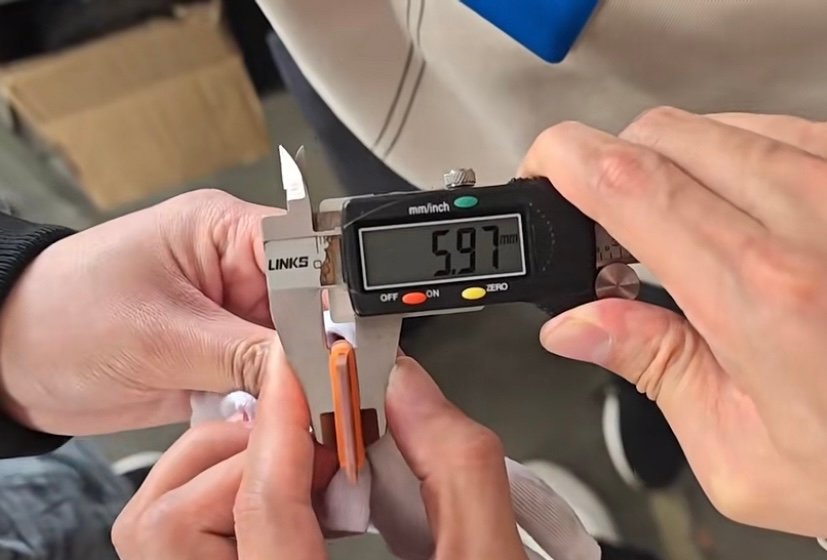

Measure the first-produced busbar against drawing-defined dimensions, hole positions and formed geometry before batch production.
03 · IPQC

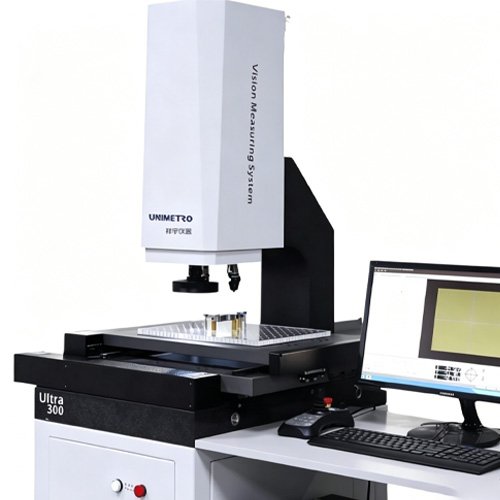

In-Process Quality Checks
Review key dimensions and process checkpoints during manufacturing, with inspection criteria tied to the job requirements.
04 · FQC
Final Product Verification

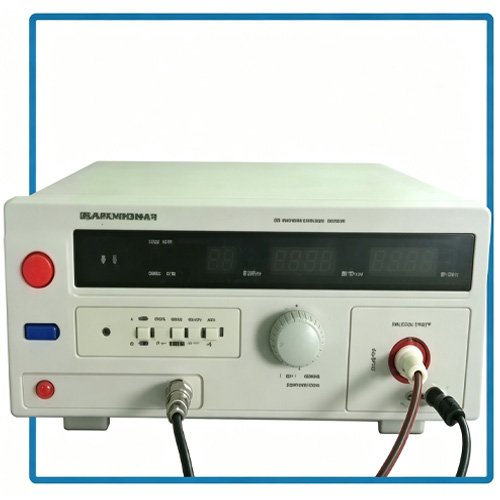

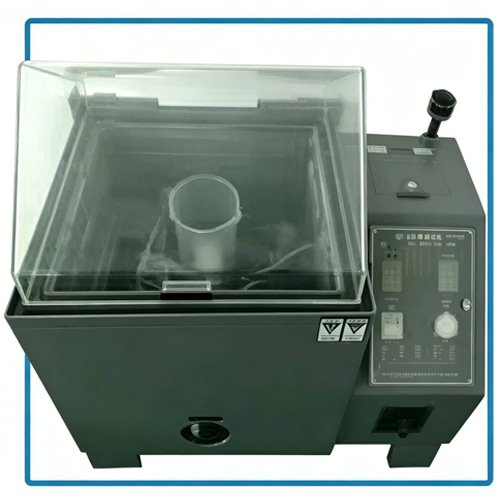

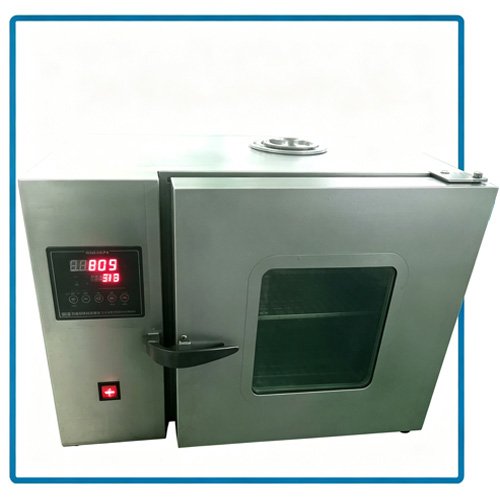

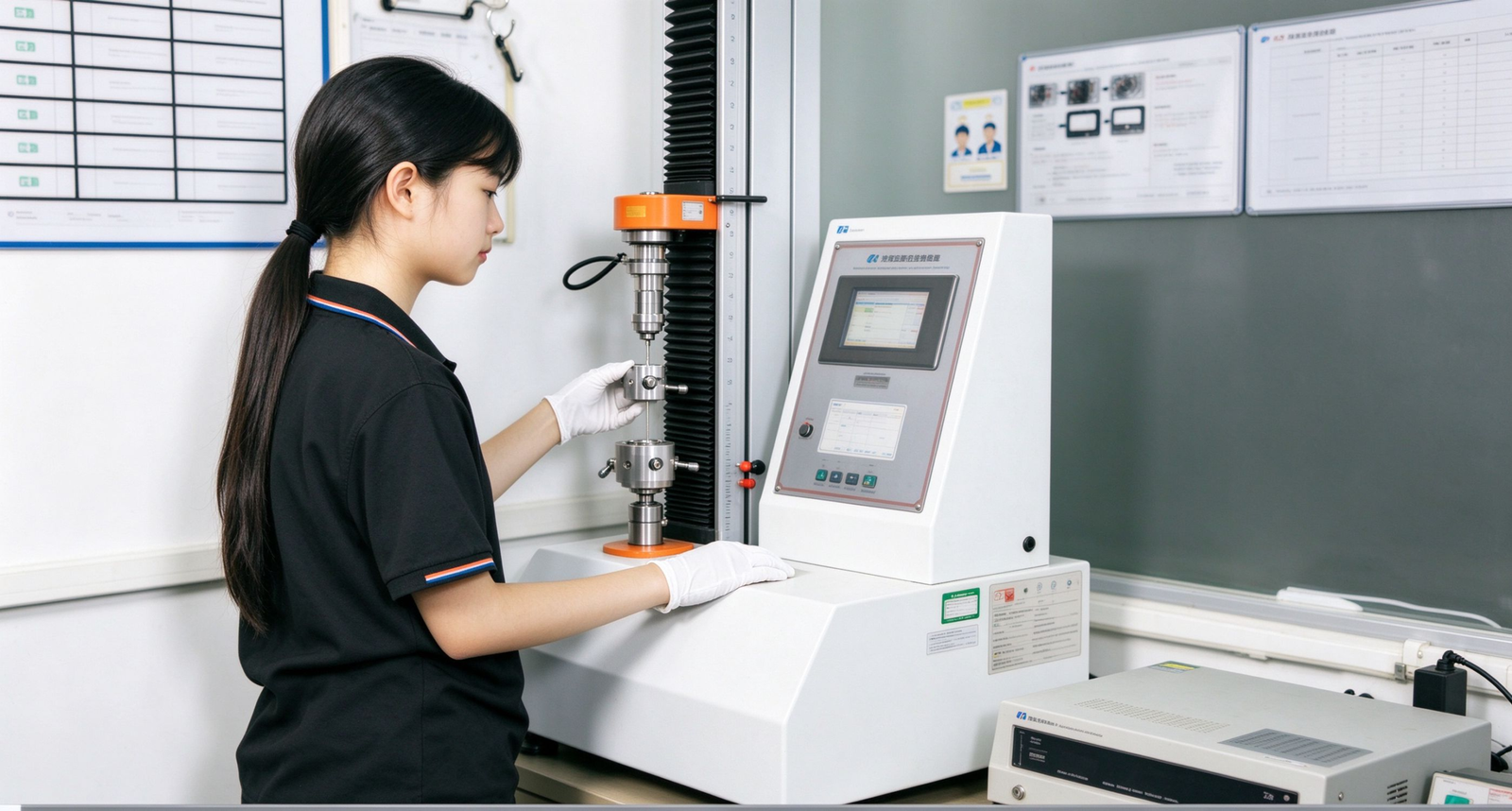

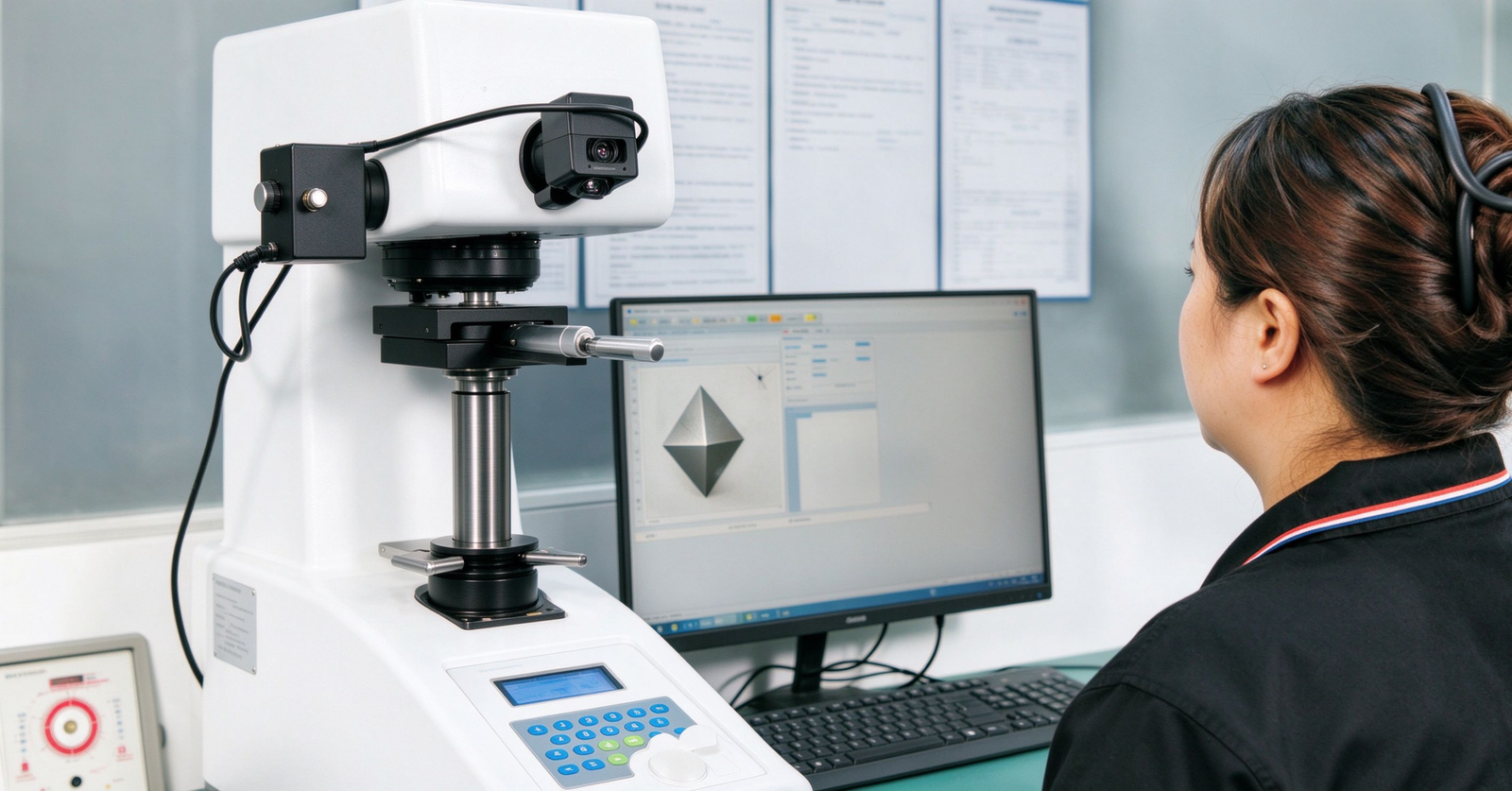

Verify finished parts against agreed requirements. Hardness and mechanical testing equipment can support project-specific checks where applicable.

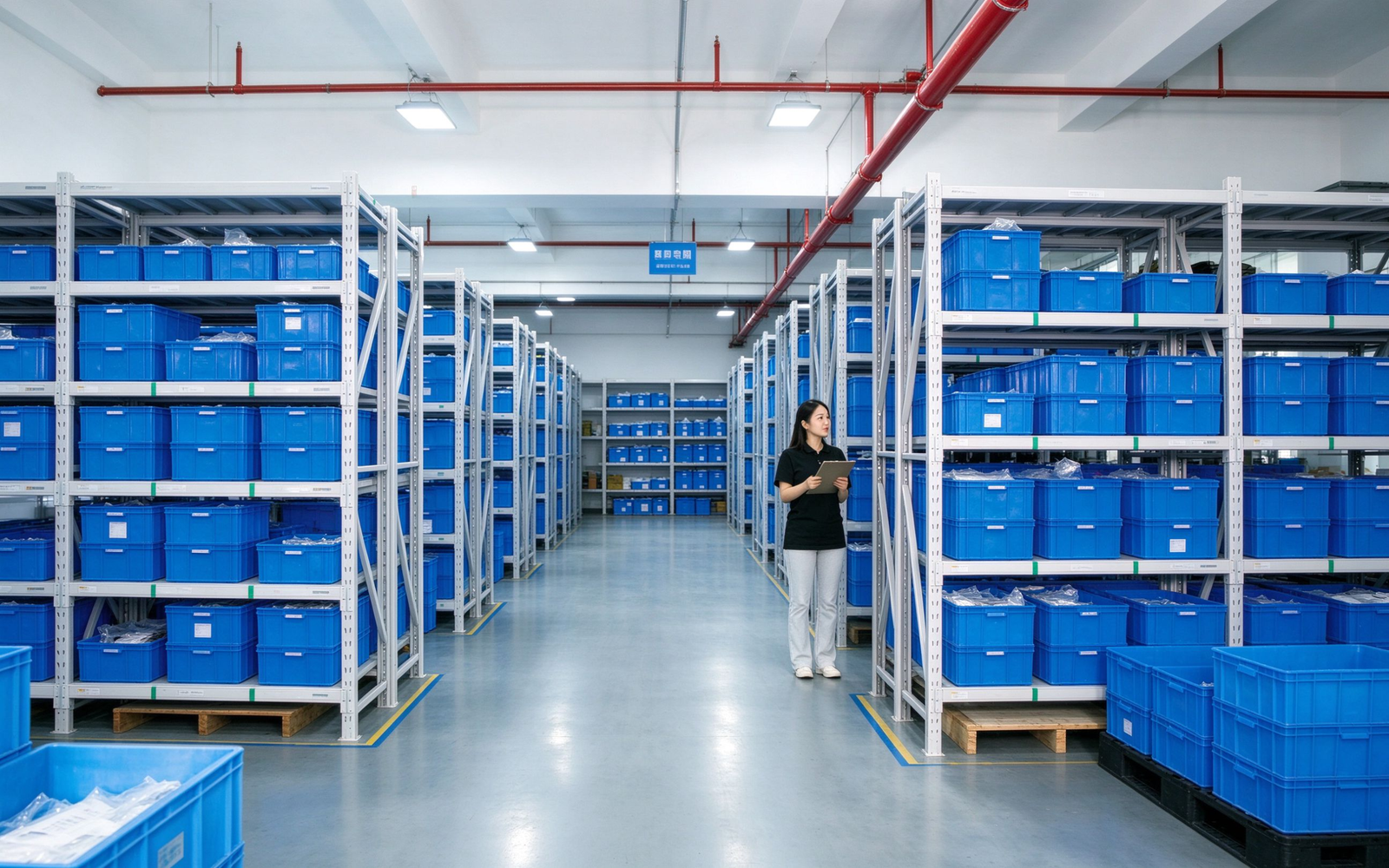

05 · OQC
Outgoing Inspection & Release
Review quantity, identification, packaging and relevant records against the order before shipment.
Built for Custom Copper Busbar Projects
From drawing review and process planning to inspection and shipment, our Huizhou team helps turn non-standard copper busbar requirements into producible parts.
Drawing-Led Review
Discuss material, bend geometry, hole positions and insulation requirements with the team that plans production.
Defined Inspection Points
Align IQC, FAI, IPQC, FQC and OQC checks with the drawing and agreed acceptance criteria.
Custom & Repeat Builds
Plan prototypes, revisions and repeat orders around the part design; confirm quantity and timing for each project.
Clear Technical Follow-Up
Raise critical dimensions, test methods and documentation needs early, before they become production questions.
Tell us what your busbar must do.
Send a drawing or describe the application, quantity, material and inspection requirements. Our engineering team will review your request and aim to reply within 12 hours.
